Allis Chalmers 190 Engine


Allis Chalmers 190 tractor photo
1964 - 1972
Row-Crop tractor
Series map:
180
190
190XT
71.1hp*
85.8hp*
104.0hp*
*Estimated engine power for comparison only.
Engines overview
Allis Chalmers 4.3L 6-cyl gasoline
Allis-Chalmers 4.9L 6-cyl diesel
Engine Detail
Allis Chalmers G2500
gasoline
6-cylinder
liquid-cooled
Displacement265 ci
4.3 L
Bore/Stroke3.75x4.00 inches
95 x 102 mm
Air cleanerdry
Compression8:1
Rated RPM2200
Firing order1-5-3-6-2-4
Coolant capacity18 qts
17.0 L
Sparkplug gap0.025 inches
0.635 mm
Point gap0.016 inches
0.406 mm
Intake valve clearance0.020 inches (hot)
0.508 mm
Exhaust valve clearance0.025 inches (hot)
0.635 mm
Engine Oil

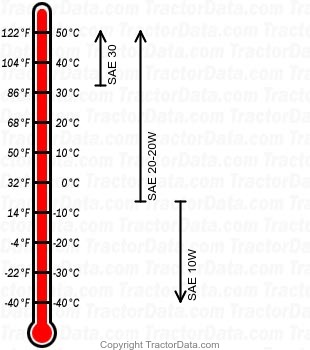

190 gasoline engine oil chart
Oil capacity12 qts
11.4 L
Engine Detail
Allis-Chalmers 2800
diesel
6-cylinder
liquid-cooled
Displacement301 ci
4.9 L
Bore/Stroke3.875x4.25 inches
98 x 108 mm
Fuel systemdirect injection
Air cleanerdry
Compression16.25:1
Rated RPM2200
Firing order1-5-3-6-2-4
Coolant capacity18 qts
17.0 L
Intake valve clearance0.015 inches
0.381 mm
Exhaust valve clearance0.015 inches
0.381 mm
Engine Oil

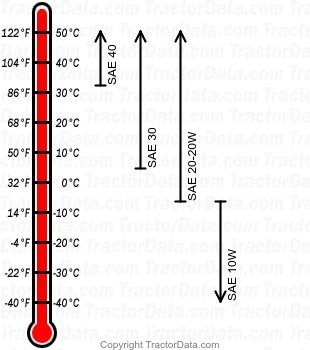

190 diesel engine oil chart
Oil capacity12 qts
11.4 L
Allis Chalmers 190 Engine

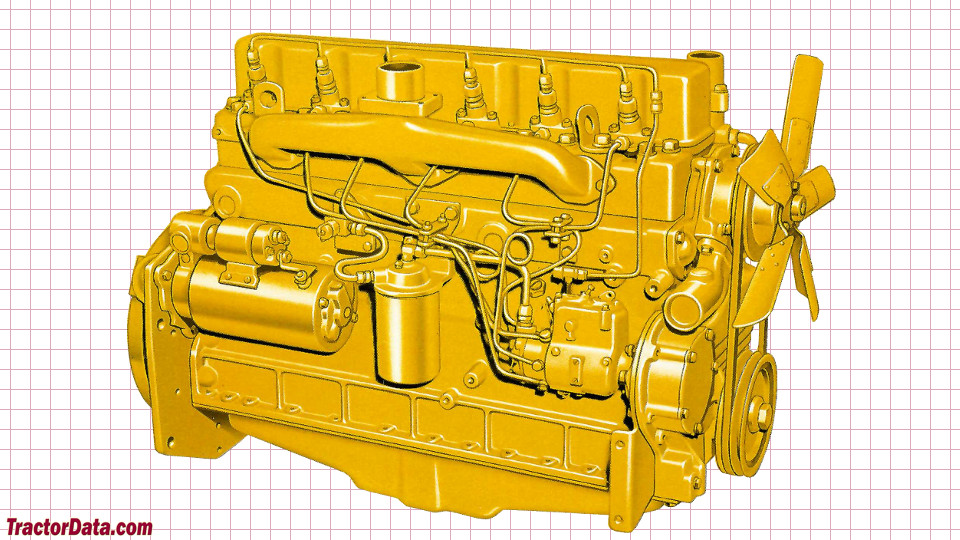

Allis Chalmers 190 engine image
