Tractors > Allis Chalmers > D19

Allis Chalmers D19 Engine

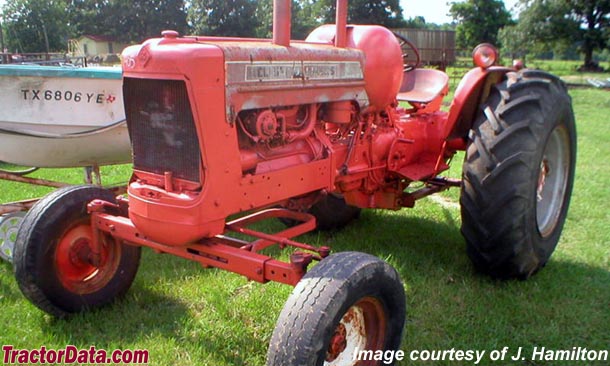

Allis Chalmers D19 tractor photo
1961 - 1964
D Series
Row-Crop tractor
Series map:
D19
85.0hp
Engines overview
Allis Chalmers 4.3L 6-cyl gasoline
Allis-Chalmers 4.3L 6-cyl diesel
Allis-Chalmers 4.3L 6-cyl LP gas
Engine Detail
Allis Chalmers
gasoline
6-cylinder
liquid-cooled
Displacement262 ci
4.3 L
Bore/Stroke3.5625x4.375 inches
90 x 111 mm
Power85 hp
63.4 kW
Air cleanerdry with precleaner
Compression8.0:1
Rated RPM2000
Starter volts12

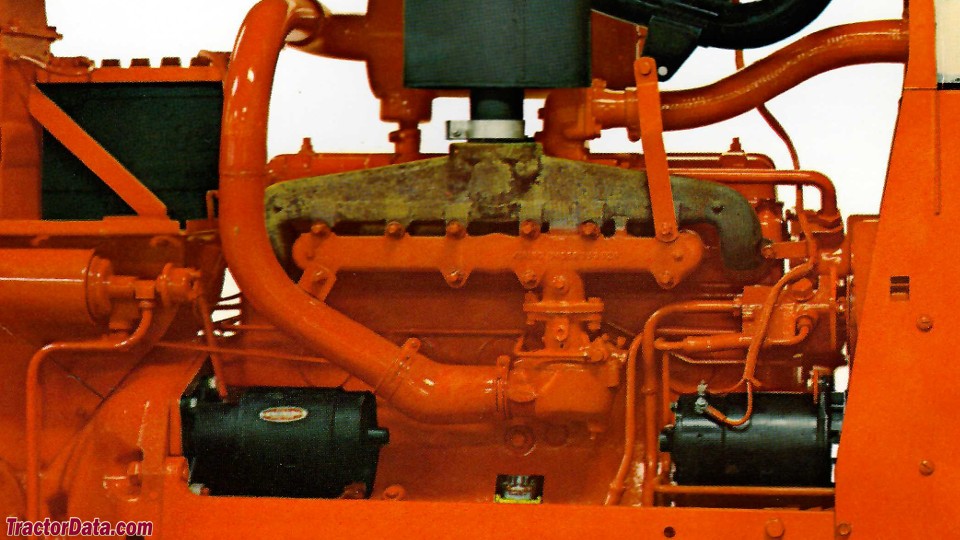

Allis Chalmers D19 Engine
Allis Chalmers D19 engine image
Engine Detail
Allis-Chalmers
turbocharged diesel
6-cylinder
liquid-cooled
Displacement262 ci
4.3 L
Bore/Stroke3.5625x4.375 inches
90 x 111 mm
Power80 hp
59.7 kW
Air cleanerdry with precleaner
Compression14.0:1 (early)
 15.0:1 (late)
Rated RPM2000
Starter volts12
Engine Detail
Allis-Chalmers
LP gas
6-cylinder
liquid-cooled
Displacement262 ci
4.3 L
Bore/Stroke3.5625x4.375 inches
90 x 111 mm
Power80 hp
59.7 kW
Air cleanerdry with precleaner
Compression9.35:1
Rated RPM2000
Starter volts12

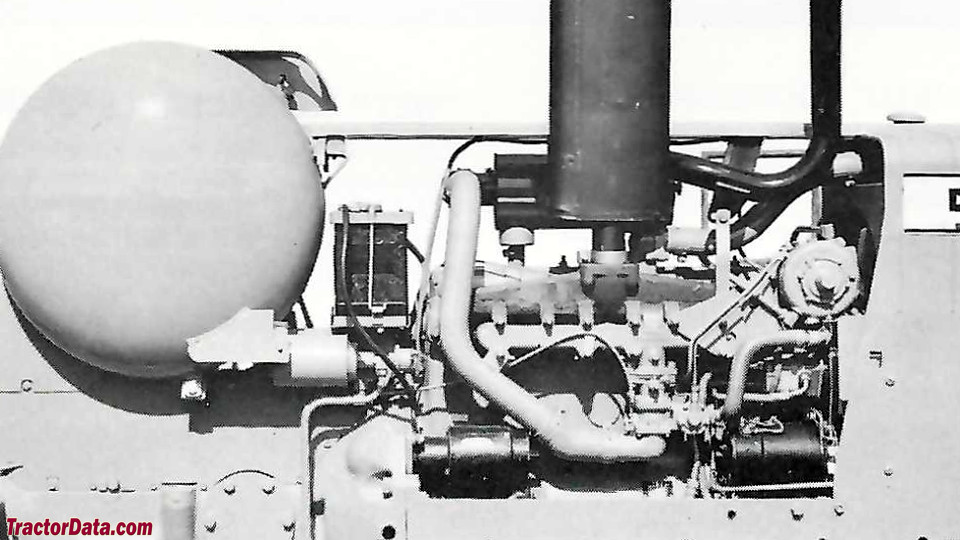

Allis Chalmers D19 Engine
Allis Chalmers D19 engine image
