Allis Chalmers 190 Tests


Allis Chalmers 190 tractor photo
1964 - 1972
Row-Crop tractor
Series map:
180
190
190XT
71.1hp*
85.8hp*
104.0hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 886: diesel 8-speed 2WD
NTTL 928: gasoline 8-speed 2WD
Nebraska Tractor Test 886

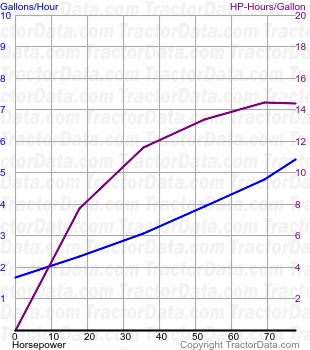

190 fuel use from test 886
Nebraska Tractor Test 886
Diesel 8-speed 2WD
April 10 - 16, 1965
Link: Nebraska Tractor Test 886 file
PTO performance
Power at rated engine speed77.20 hp
57.6 kW
Fuel use5.4 gal/hour
20.4 l/hour
Power at rated PTO speed72.33 hp
53.9 kW
Fuel use5.0 gal/hour
18.9 l/hour
Drawbar performance
Max power65.33 hp
48.7 kW
Fuel use5.3 gal/hour
20.1 l/hour
Gear 4 used for power test.
Max pull8663 lbs
3929 kg
Gear 2 used for pull test.
Nebraska Tractor Test 928

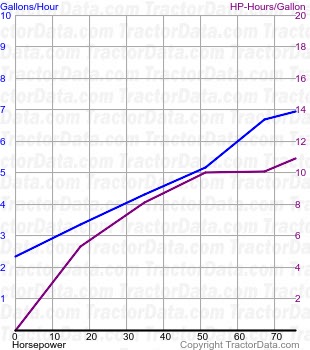

190 fuel use from test 928
Nebraska Tractor Test 928
Gasoline 8-speed 2WD
November 9 - 16, 1965
Link: Nebraska Tractor Test 928 file
PTO performance
Power at rated engine speed75.37 hp
56.2 kW
Fuel use6.9 gal/hour
26.1 l/hour
Power at rated PTO speed70.18 hp
52.3 kW
Fuel use6.2 gal/hour
23.5 l/hour
Drawbar performance
Max power63.10 hp
47.1 kW
Fuel use7.2 gal/hour
27.3 l/hour
Gear 4 used for power test.
Max pull8753 lbs
3970 kg
Gear 2 used for pull test.
