Tractors > Allis Chalmers > 180

Allis Chalmers 180 Engine



Allis Chalmers 180 tractor photo
1967 - 1973
Row-Crop tractor
Series map:
170
180
190
60.0hp*
71.1hp*
85.8hp*
*Estimated engine power for comparison only.
Engine options
Allis Chalmers 4.9L 6-cyl diesel
Allis-Chalmers 4.3L 6-cyl gasoline
Engine Detail
Allis Chalmers 2800
diesel
6-cylinder
liquid-cooled
Displacement301 ci
4.9 L
Bore/Stroke3.875x4.25 inches
98 x 108 mm
Compression16.25:1
Rated RPM2000
Firing order1-5-3-6-2-4
Starter volts12
Coolant capacity17 qts
16.1 L
Intake valve clearance0.015 inches*Hot
0.381 mm
Exhaust valve clearance0.015 inches*Hot
0.381 mm
Engine Oil

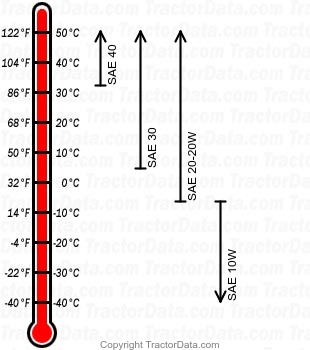

180 diesel engine oil chart
Oil capacity10 qts
9.5 L

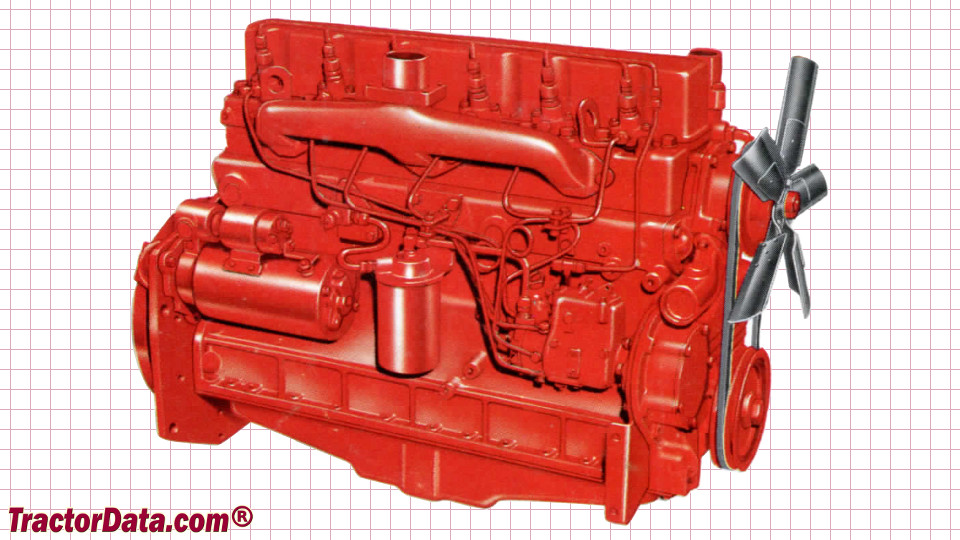

Allis Chalmers 180 Engine
Allis Chalmers 180 engine image
Engine Detail
Allis-Chalmers
gasoline
6-cylinder
liquid-cooled
Displacement265 ci
4.3 L
Bore/Stroke3.75x4.00 inches
95 x 102 mm
Compression8.15:1
Rated RPM2000
Firing order1-5-3-6-2-4
Oil capacity12 qts
11.4 L

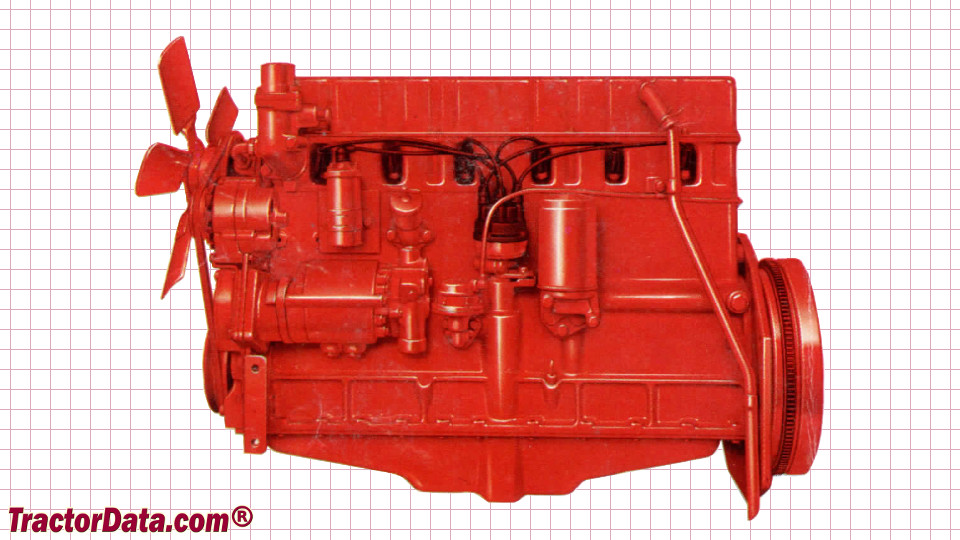

Allis Chalmers 180 Engine
Allis Chalmers 180 engine image
