John Deere 2350

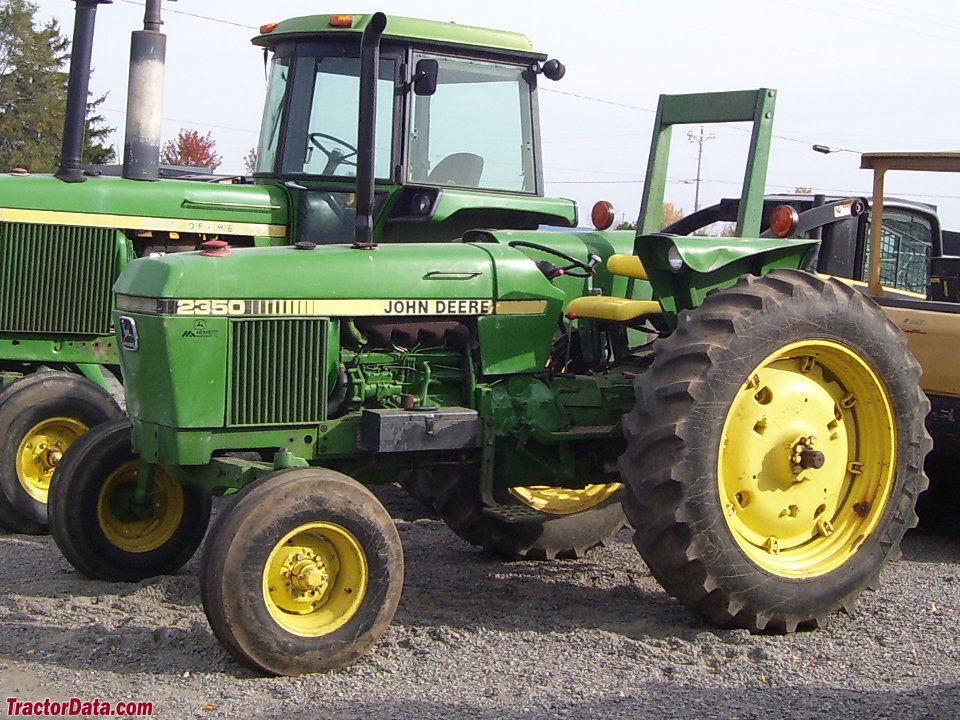

John Deere 2350 tractor photo
1983 - 1986
2050 Series
Utility tractor
Series map:
2150
2350
2550
50.0hp*
61.1hp*
72.2hp*
*Estimated engine power for comparison only.
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-W├╝rttemberg, Germany
Original price$19155 (1983 2WD )
$23,770 (1983 4WD )
John Deere 2350 Engine
John Deere 3.9L 4-cyl diesel
Fuel tank24 gal
90.8 L
Engine details ...
John Deere 2350 Transmissions
8-speed partially synchronized
16-speed two-speed power shift
8-speed power shuttle
Transmission details ...
John Deere 2350 Power
PTO (claimed)55 hp
41.0 kW
Drawbar (tested)46.66 hp
34.8 kW
PTO (tested)56.18 hp
41.9 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesinboard planetary
Differential lockmechanical rear
Power steering
Differential hydraulic wet disc brakes
Two-post fixed ROPS. Canopy available. Sound-Gard cab optional with available heat and air-conditioning.
Hydraulics
Typeclosed center
Pressure2250 psi
155.1 bar
Rear valves1 or 2
Pump flow13 gpm
49.2 lpm
 23 gpmOptOptional
87.1 lpm
Tractor hitch
Rear TypeII/I
Controlload and depth control
Rear lift2735 lbs
1240 kg
Power Take-off (PTO)
Rear PTOindependent
 live *With reverser
Rear RPM540
Engine RPM540@2382
Dimensions & Tires
2WD Wheelbase89.2 inches
226 cm
4WD Wheelbase90 inches
228 cm
Weight6810 to 8220 pounds
Front tire7.50-16
2WD Rear tire16.9-30
Full dimensions and tires ...
2350 Serial Numbers

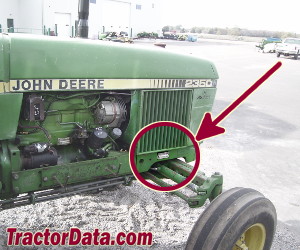

2350 Serial Location
John Deere 2350 serial number location
Right side of main tractor frame, above front axle.
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps33
Cab Charging amps55
Batteries1 (ROPS)
 2 (cab)
Battery volts12
Battery AH55
References
2350 references literature
Consumer Products Price List published in 1983, by John Deere
Grounds Care Equipment Purchasing Guide published in 1983, by John Deere
Loaders, Spreaders and Blades published in 1984, by John Deere
Utility Tractors 45 & 55 HP published in 1984, by John Deere
Operator's Manual 2350 and 2550 (OML55481) published in 1984
Compact Utility/Utility Tractors Product Information Handbook published in 1983, by John Deere
Tractors 45 to 85 HP published in 1984, by John Deere
Utility Tractors Product Information Handbook published in 1984, by John Deere
Mechanical Front-Wheel Drive published in 1984, by John Deere
Agricultural Price List published in 1983, by John Deere
Tractors Hi-Crop, Low-Profile, Narrow- and Wide-Tread published in 1985, by John Deere
