Tractors > John Deere > 2350

John Deere 2350 Engine



John Deere 2350 tractor photo
1983 - 1986
2050 Series
Utility tractor
Series map:
2150
2350
2550
50.0hp*
61.1hp*
72.2hp*
*Estimated engine power for comparison only.
Engine Detail
John Deere
diesel
4-cylinder
liquid-cooled
Displacement239 ci
3.9 L
Bore/Stroke4.19x4.33 inches
106 x 110 mm
Compression17.4:1
Rated RPM2500
Operating RPM1500-2500
Torque160 lb-ft
217.0 Nm
Torque RPM1400
Firing order1-3-4-2
Starter volts12
Coolant capacity13.6 qts
12.9 L
Engine Oil

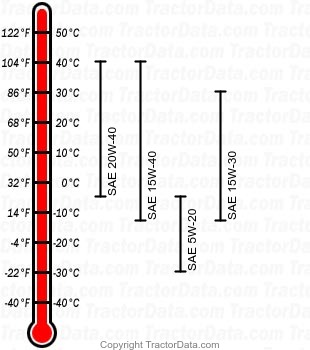

2350 diesel engine oil chart
Oil capacity8.9 qts
8.4 L
Oil change100 h
