John Deere 2350 Transmission


John Deere 2350 tractor photo
1983 - 1986
2050 Series
Utility tractor
Series map:
2150
2350
2550
50.0hp*
61.1hp*
72.2hp*
*Estimated engine power for comparison only.
Transmissions overview
8-speed partially synchronized
16-speed two-speed power shift
8-speed power shuttle
Transmission
TransmissionJohn Deere Top-Shaft Synchronized
Typepartially synchronized
Gears8 forward and 4 reverse
Oil capacity47.6 qts
45.0 L
Four gears in two ranges, plus reverse range. Synchronized shifting between gears.
Speeds
With 16.9-30 rear tires.

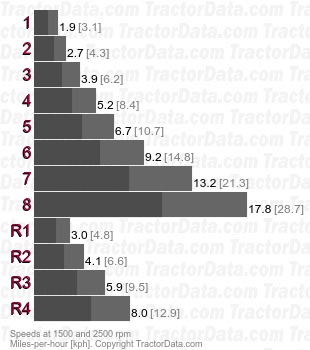

2350 Top-Shaft Synchronized partially synchronized speeds
Transmission
TransmissionJohn Deere Hi-Lo Top-Shaft Synchronized
Typetwo-speed power shift
Gears16 forward and 8 reverse
Clutchdry disc
Four gears (1-4) in two ranges (I-II) and reverse (R) with two-speed power shift (rabbit/turtle).
Speeds

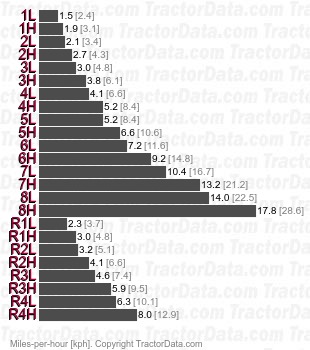

2350 Hi-Lo Top-Shaft Synchronized two-speed power shift speeds
Shift Pattern

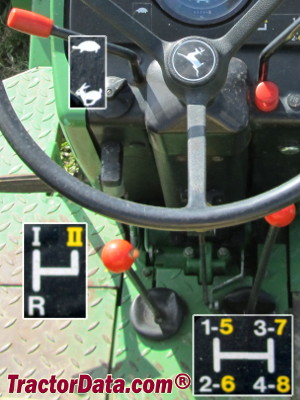

John Deere 2350 transmission controls
Transmission
TransmissionJohn Deere Direction Reverser
Typepower shuttle
Gears8 forward and 4 reverse
The Direction Reverser transmission provides clutchless hydraulic shuttle shifting using a left-hand reverser lever. Reverser not available with 4WD or cab. Reverse only operates in low range.
Speeds
With 16.9-28 rear tires.

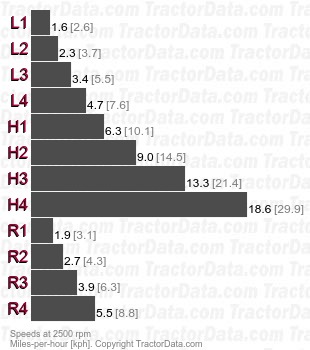

2350 Direction Reverser power shuttle speeds
