John Deere 2150

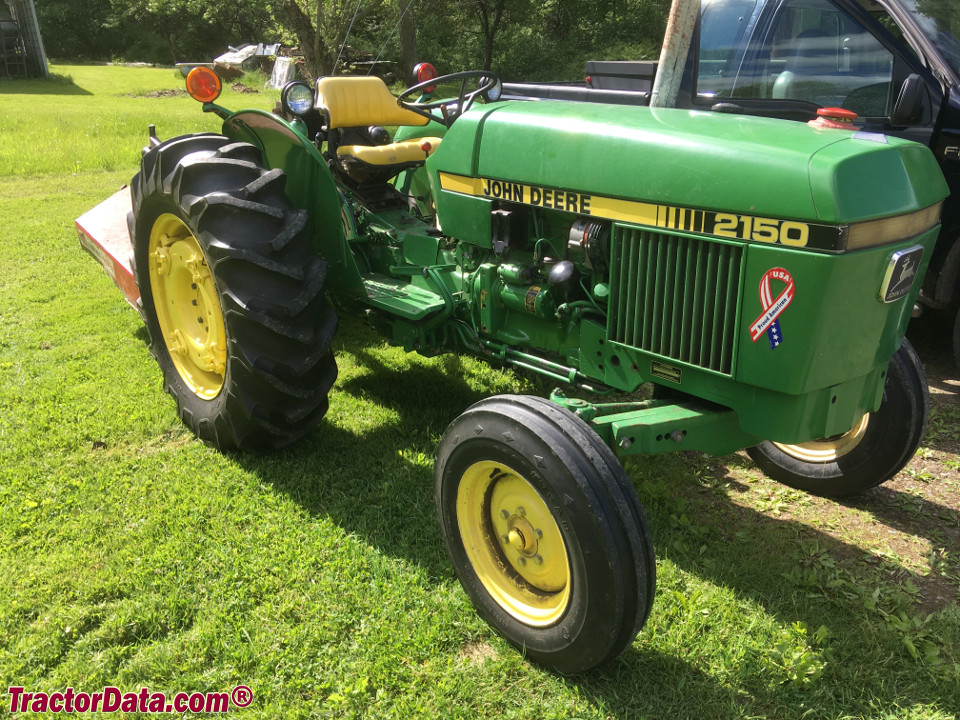

John Deere 2150 tractor photo
1983 - 1986
2050 Series
Utility tractor
Series map:
2150
2350
50.0hp
61.1hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-W├╝rttemberg, Germany
Original price$16,425 (1983 2WD )
$21,455 (1983 4WD )
John Deere 2150 Engine
John Deere 2.9L 3-cyl diesel
Fuel tank19.5 gal
73.8 L
Engine details ...
John Deere 2150 Transmissions
8-speed partially synchronized
16-speed two-speed power shift
8-speed power shuttle
Transmission details ...
John Deere 2150 Power
PTO (claimed)45 hp
33.6 kW
Drawbar (tested)38.11 hp
28.4 kW
PTO (tested)46.47 hp
34.7 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesinboard planetary
Differential lockmechanical rear
Power steering
Differential hydraulic wet disc brakes
Two-post fixed ROPS. Canopy available.
Photos
No photos of the John Deere 2150 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center
Pressure2250 psi
155.1 bar
Rear valves0 to 2
Pump flow13 gpm
49.2 lpm
Tractor hitch
Rear TypeII/I
Controlload and depth control
Rear lift2023 lbs
917 kg
Power Take-off (PTO)
Rear PTOindependent
 live (with reverser)
Rear RPM540
Dimensions & Tires
2WD Wheelbase74.4 inches
188 cm
4WD Wheelbase80.9 inches
205 cm
Weight4970 to 5670 pounds
Front tire6.50-16
2WD Rear tire13.6-28
Full dimensions and tires ...
2150 Serial Numbers

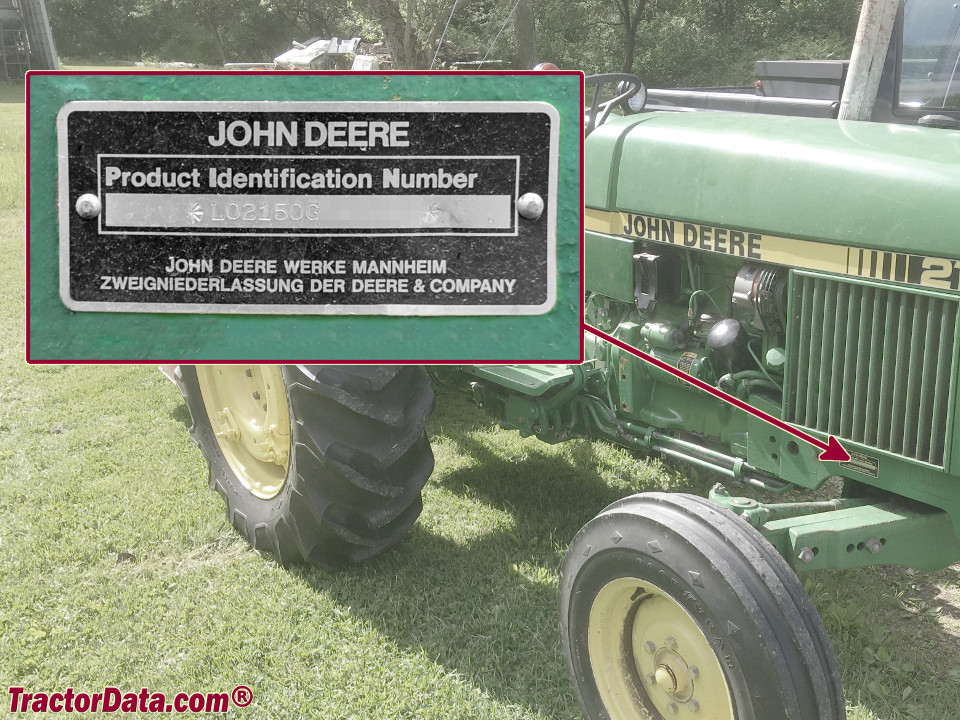

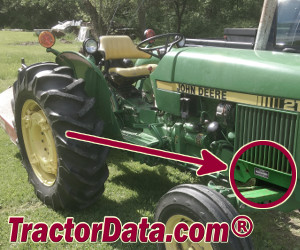

Location:Right side of main tractor frame, above front axle.
1983433467
1984505001
1985532000
1986562001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps33
Batteries2
Battery volts12
Battery AH55
References

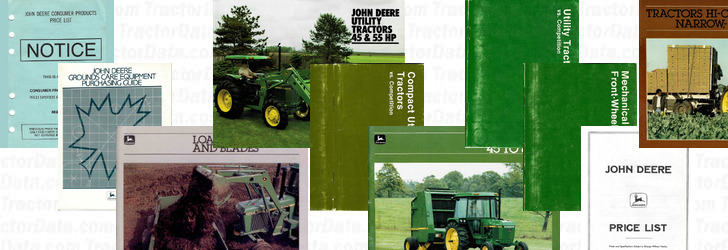

2150 references literature
Consumer Products Price List published in 1983, by John Deere
Grounds Care Equipment Purchasing Guide published in 1983, by John Deere
Loaders, Spreaders and Blades published in 1984, by John Deere
Utility Tractors 45 & 55 HP published in 1984, by John Deere
Compact Utility/Utility Tractors Product Information Handbook published in 1983, by John Deere
Tractors 45 to 85 HP published in 1984, by John Deere
Utility Tractors Product Information Handbook published in 1984, by John Deere
Mechanical Front-Wheel Drive published in 1984, by John Deere
Agricultural Price List published in 1983, by John Deere
Tractors Hi-Crop, Low-Profile, Narrow- and Wide-Tread published in 1985, by John Deere
