John Deere 2510



John Deere 2510 tractor photo
1965 - 1968
Row-Crop tractor
Series map:
2510
53.6hp*
*Estimated engine power for comparison only.
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
Total built14,869 (total row-crop)
 8,023 (gas Syncro)
 5,516 (diesel Syncro)
 817 (diesel Power Shift)
 513 (gas Power Shift)
The John Deere model 2510 used a 2020 engine fitted to a modified 3020 chassis. The tractor met the need for a smaller row-crop tractor, still popular in the United States in the late 1960s.
Variants
2510row-crop
2510HChigh-crop
John Deere 2510 Engines
John Deere 3.0L 4-cyl gasoline
John Deere 3.3L 4-cyl diesel
Engine details ...
John Deere 2510 Transmissions
8-speed partially synchronized
8-speed full power shift
Transmission details ...
John Deere 2510 Power
Drawbar (tested)46.82 hp
34.9 kW
PTO (tested)54.9 hp
40.9 kW
Performance test details ...
Mechanical
Two-wheel drive
Differential lockmechanical rear
Power steering
Hydraulic wet disc brakes
Open operator station.
Photos
John Deere 2510 with wide front end, left side.
John Deere 2510 photos...
Capacity
Fuel26 gal
98.4 L
Hydraulic system8 gal (SyncroRange)*Capacity at service interval. Dry system capacity is 11 US gallons.
30.3 L
 11 gal (PowerShift)*Capacity at service interval. Dry system capacity is 14 US gallons.
41.6 L
Hydraulics
Typeclosed center constant pressure
Capacity8 gal (SyncroRange)*Capacity at service interval. Dry system capacity is 11 US gallons.
30.3 L
 11 gal (PowerShift)*Capacity at service interval. Dry system capacity is 14 US gallons.
41.6 L
Pressure2250 psi
155.1 bar
Valves1 or 2
Oil type
Deere 303
Tractor hitch
Rear TypeII/I
Controlposition and lower-link draft control
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000 (1.375)
 1000 (1.375)
Engine RPM540@2100
 1000@2100
Front PTOoptional
Front PTO Type1000
Engine RPM1000@2100
Dimensions & Tires
Wheelbase90 inches
228 cm
Weight6200 to 6745 pounds
Front tire6.00-16
Rear tire13.6-38
Full dimensions and tires ...
John Deere 2510 attachments
front-end loader
Attachment details ...
2510 Serial Number Location
John Deere 2510 serial number location

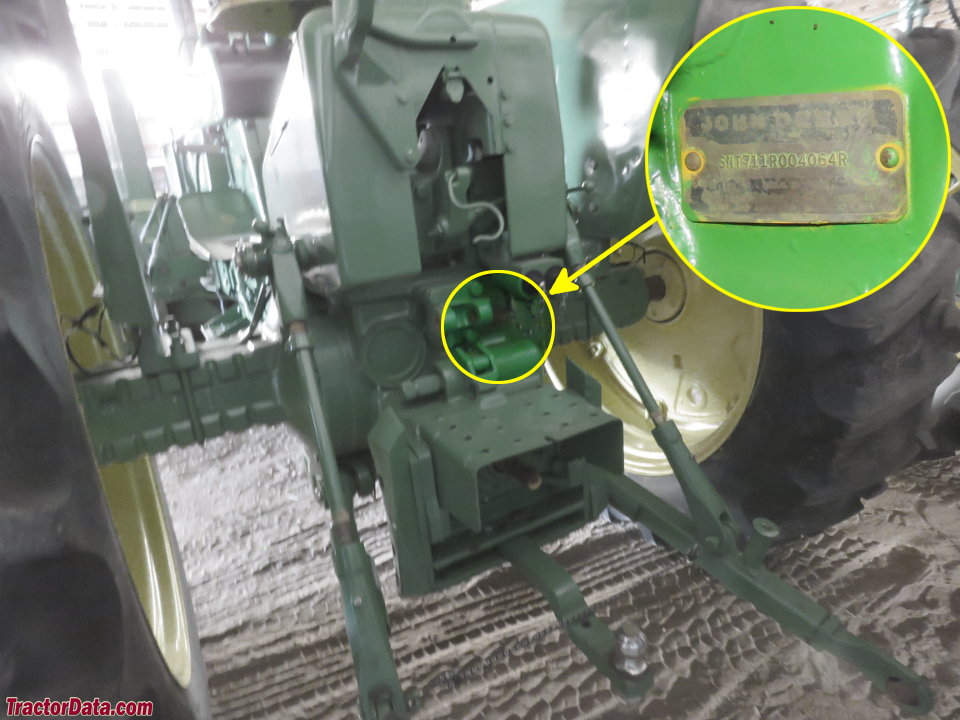

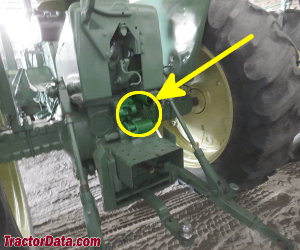

Serial number plate on the rear of the John Deere 2510, above the PTO shaft.
2510 Serial Numbers
19661000
19678958
196814291
Final16501

FAQ: How to read a serial number table.
Electrical
Groundnegative
Batteries1 (gas)
 2 (diesel)
Battery volts12
Battery AH75
References
2510 references literature
The John Deere 10 Series New Generation Tractors published in 2004, by Hain Publishing
2510, 3020, 4020 Row-crop Tractors published in 1965, by John Deere
John Deere 2510 Tractors (OM-R38357)
Tractors 1918-1976 published by John Deere*
John Deere Tractors for 68 published in 1968
*Publication contains known errors.
