John Deere 2510 Transmission


John Deere 2510 tractor photo
1965 - 1968
Row-Crop tractor
Series map:
2510
53.6hp*
*Estimated engine power for comparison only.
Transmission options
8-speed partially synchronized
8-speed full power shift
Transmission
TransmissionJohn Deere Syncro-Range
Typepartially synchronized
Gears8 forward and 2 reverse
Clutchdry disc
Oil capacity44 qts (dry)
41.6 L
 32 qts (service)
30.3 L
Oil type
Deere 303
Oil change1200 h
Four shift stations with two forward gears gear. A reverse gear is also available in stations one and two. Synchronized shifting between gears within each station. Tractor must be stopped to shift between stations.
Speeds

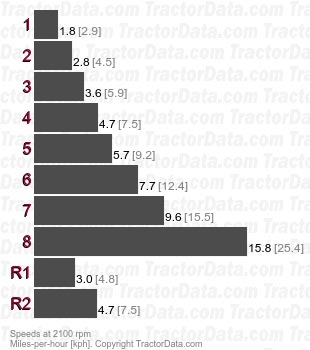

2510 Syncro-Range partially synchronized speeds
Shift Pattern

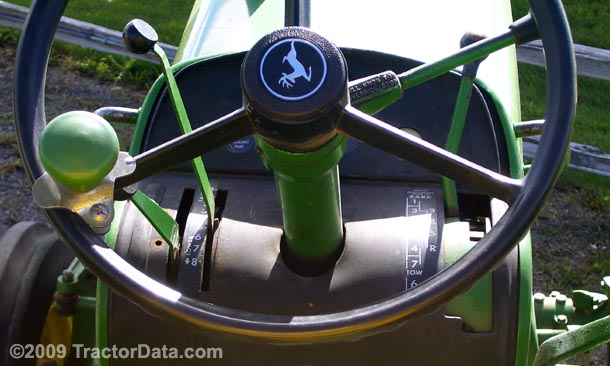

John Deere 2510 transmission controls
Transmission
TransmissionJohn Deere Power Shift
Typefull power shift
Gears8 forward and 4 reverse
Clutchhydraulic wet disc
Oil capacity56 qts (dry)
53.0 L
 44 qts (service)
41.6 L
Oil type
Deere 303
Oil change1200 h
Speeds

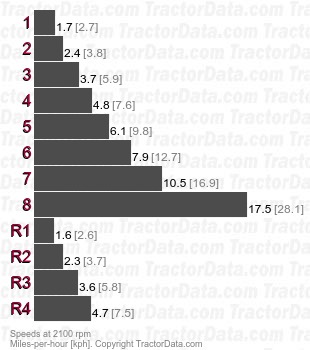

2510 Power Shift full power shift speeds
Shift Pattern
John Deere 2510 transmission controls
