John Deere 2510 Tests


John Deere 2510 tractor photo
1965 - 1968
Row-Crop tractor
Series map:
2510
53.6hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 913: gasoline Power Shift 2WD
NTTL 914: gasoline Syncro-Range 2WD
NTTL 915: diesel Power Shift 2WD
NTTL 916: diesel Syncro-Range 2WD
Nebraska Tractor Test 913

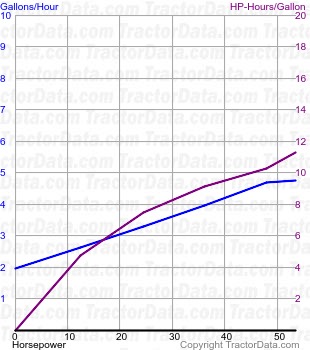

2510 fuel use from test 913
Nebraska Tractor Test 913
Gasoline Power Shift 2WD
September 24 - 30, 1965
Link: Nebraska Tractor Test 913 file
PTO performance
Power at rated engine speed49.57 hp
37.0 kW
Fuel use4.8 gal/hour
18.2 l/hour
Power at rated PTO speed45.05 hp
33.6 kW
Fuel use4.2 gal/hour
15.9 l/hour
Drawbar performance
Max power42.44 hp
31.6 kW
Fuel use4.9 gal/hour
18.5 l/hour
Gear 4 used for power test.
Max pull6,038 lbs
2738 kg
Gear 2 used for pull test.
Nebraska Tractor Test 914

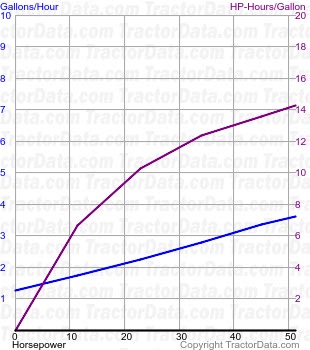

2510 fuel use from test 914
Nebraska Tractor Test 914
Gasoline Syncro-Range 2WD
September 24 - October 2, 1965
Link: Nebraska Tractor Test 914 file
PTO performance
Max power48.28 hp
36.0 kW
Power at rated engine speed53.74 hp
40.1 kW
Fuel use4.8 gal/hour
18.2 l/hour
Fuel use11.63 hh/g
2.3 kWh/l
Drawbar performance
Max power45.21 hp
33.7 kW
Fuel use4.7 gal/hour
17.8 l/hour
Gear 4 used for power test.
Max pull6,418 lbs
2911 kg
Gear 2 used for pull test.
Nebraska Tractor Test 915

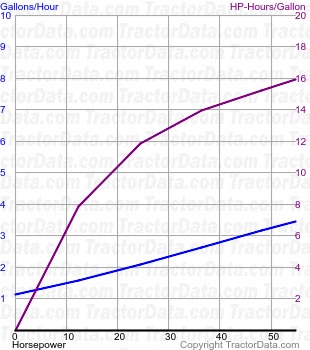

2510 fuel use from test 915
Nebraska Tractor Test 915
Diesel Power Shift 2WD
September 30 - October 5, 1965
Link: Nebraska Tractor Test 915 file
PTO performance
Max power45.80 hp
34.2 kW
Power at rated engine speed50.66 hp
37.8 kW
Fuel use3.6 gal/hour
13.6 l/hour
Fuel use15.23 hh/g
3.0 kWh/l
Drawbar performance
Max power43.54 hp
32.5 kW
Fuel use3.5 gal/hour
13.2 l/hour
Gear 4 used for power test.
Max pull6,263 lbs
2840 kg
Gear 2 used for pull test.
Nebraska Tractor Test 916

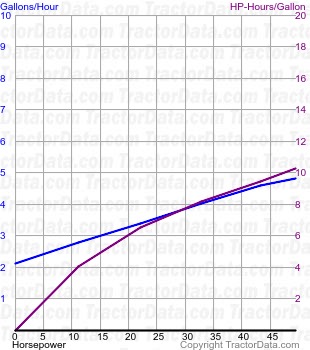

2510 fuel use from test 916
Nebraska Tractor Test 916
Diesel Syncro-Range 2WD
September 30 - October 7, 1965
Link: Nebraska Tractor Test 916 file
PTO performance
Power at rated engine speed54.9 hp
40.9 kW
Fuel use3.5 gal/hour
13.2 l/hour
Power at rated PTO speed49.24 hp
36.7 kW
Fuel use3.0 gal/hour
11.4 l/hour
Drawbar performance
Max power46.82 hp
34.9 kW
Fuel use3.4 gal/hour
12.9 l/hour
Gear 4 used for power test.
Max pull6,761 lbs
3066 kg
Gear 2 used for pull test.
