Tractors > New Holland > Boomer 41

New Holland Boomer 41

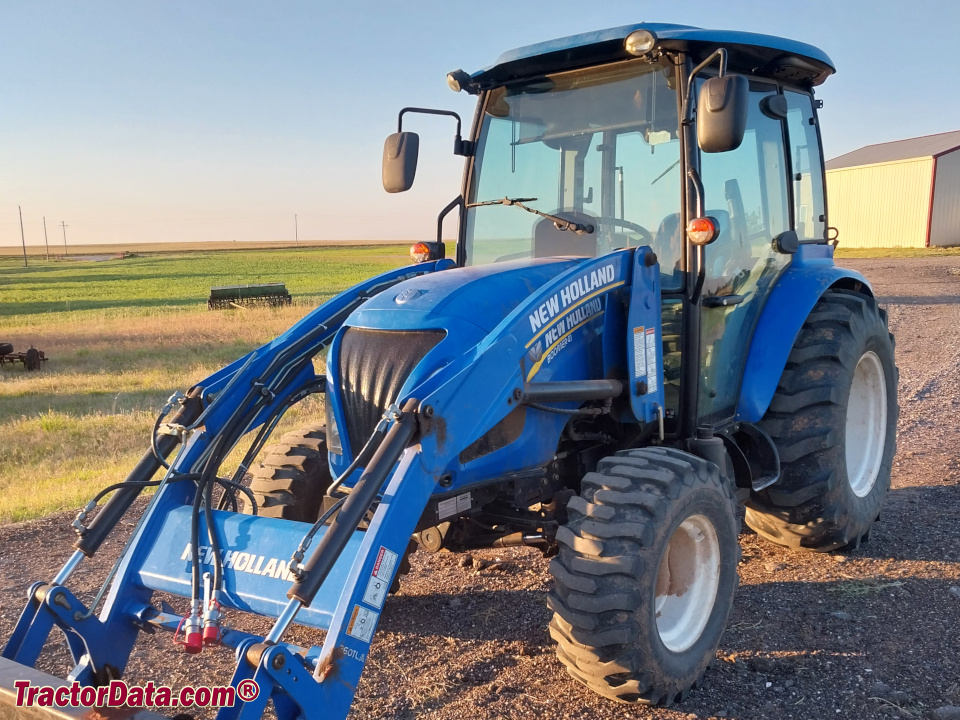

New Holland Boomer 41 tractor photo
2014 -    Boomer Series
Compact Utility tractor
Previous model:New Holland Boomer 40
Series next:New Holland Boomer 47
Series back:New Holland Boomer 37






Production:

Manufacturer:New Holland


New Holland Boomer 41 Engine:

   Shibaura 2.2L 4-cyl diesel
full engine details ...


Capacity:

Fuel:10.5 gal [39.7 L]


3-Point Hitch:

Rear Type:I
Control:position control
Rear lift (at ends):2756 lbs [1250 kg]
Rear lift (at 24"/610mm):2116 lbs [959 kg]
Rear Arms:adjustable draft link ends


Power Take-off (PTO):

Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540 (1.375)
Mid PTO:independent
Mid RPM:2000


Dimensions & Tires:

Wheelbase:73.2 inches [185 cm]
Weight:3424 to 3490 pounds
Front tire:9.5-16
Rear tire:13.6-24
full dimensions and tires ...


New Holland Boomer 41 attachments:

 front-end loader
all Boomer 41 attachments ...


Boomer 41 Serial Numbers:


- Serial numbers unknown -



New Holland Boomer 41 Power:

Engine (gross):40.2 hp [30.0 kW]
Gear PTO (claimed):31.6 hp [23.6 kW]
Hydro PTO (claimed):29.8 hp [22.2 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:hydrostatic power
Brakes:wet discs
Cab:Two-post foldable ROPS. Cab optional with air-conditioning.


Hydraulics:

Type:open center
Valves:1 or 2
Pump flow:8.2 gpm [31.0 lpm]
Gear Steering flow:4.2 gpm [15.9 lpm]
Hydro Steering flow:5.3 gpm [20.1 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:85


Battery:

Number:1
Volts:12
