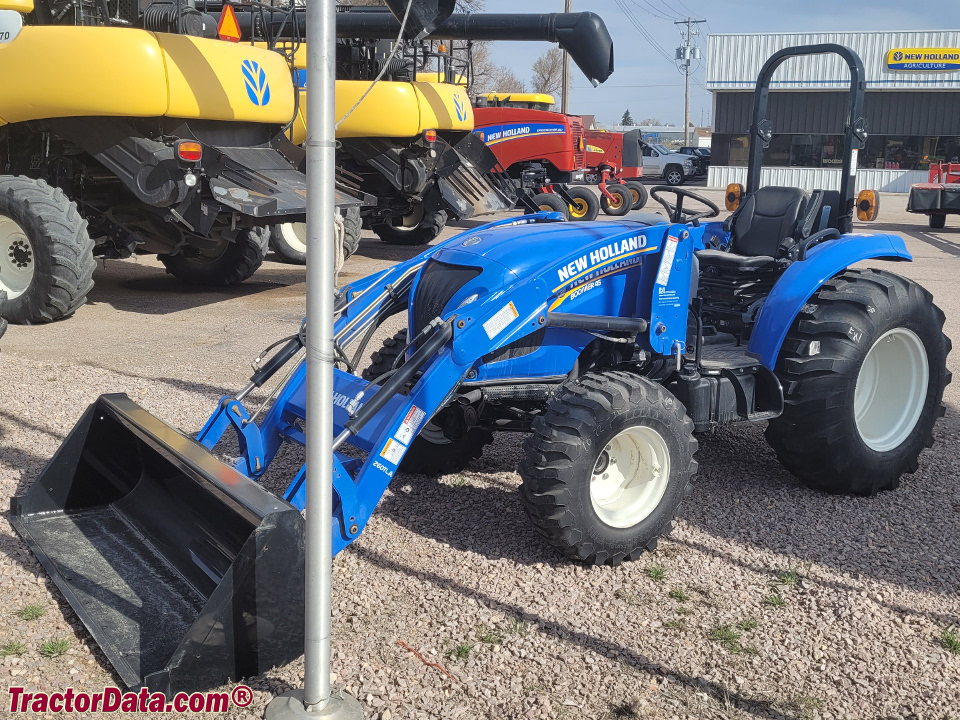

New Holland Boomer 45
|
|
| Production | |
| Manufacturer | New Holland (a part of CNH) |
| Compact Utility tractor | |
| Original price | $26,980 (2017 shuttle ROPS ) |
| $34,077 (2017 hydro cab ) | |
| Variants | |
| Farmall 45C | similar CaseIH model |
| MT347 | similar LS model |
| New Holland Boomer 45 Engine | |
| LS Mtron 1.9L 3-cyl diesel | |
| ROPS Fuel tank | 10.5 gal 39.7 L |
| Cab Fuel tank | 12.4 gal 46.9 L |
 Engine details ... | |
| New Holland Boomer 45 Transmissions | |
| 16-speed synchronized shuttle | |
| hydrostatic | |
 Transmission details ... |
| New Holland Boomer 45 Power | |
| Engine | 45 hp 33.6 kW |
| Gear PTO (claimed) | 38.2 hp 28.5 kW |
| Hydro PTO (claimed) | 36 hp 26.8 kW |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | mechanical rear |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. Cab optional with air-conditioning. | |
| Hydraulics | |
| Type | open center |
| Valves | 1 or 2 |
| Pump flow | 8.2 gpm 31.0 lpm |
| Gear Steering flow | 4.2 gpm 15.9 lpm |
| Hydro Steering flow | 5.3 gpm 20.1 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 2756 lbs 1250 kg |
| Rear lift (at 24"/610mm) | 2116 lbs 959 kg |
| Rear Arms | telescoping draft links |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic |
| Rear PTO Type | 540 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 73.2 inches 185 cm |
| Weight | 3424 to 4194 pounds |
| Front tire | 9.5x16 |
| Rear tire | 13.6-24 |
 Full dimensions and tires ... | |
| New Holland Boomer 45 attachments | |
| 72" mid-mount mower deck | |
| snowblower | |
| blade | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| ROPS Charging amps | 70 |
| Cab Charging amps | 85 |
| Battery volts | 12 |
| References | |
 | |
| Under 60-HP Tractors published in 2017, by New Holland |
