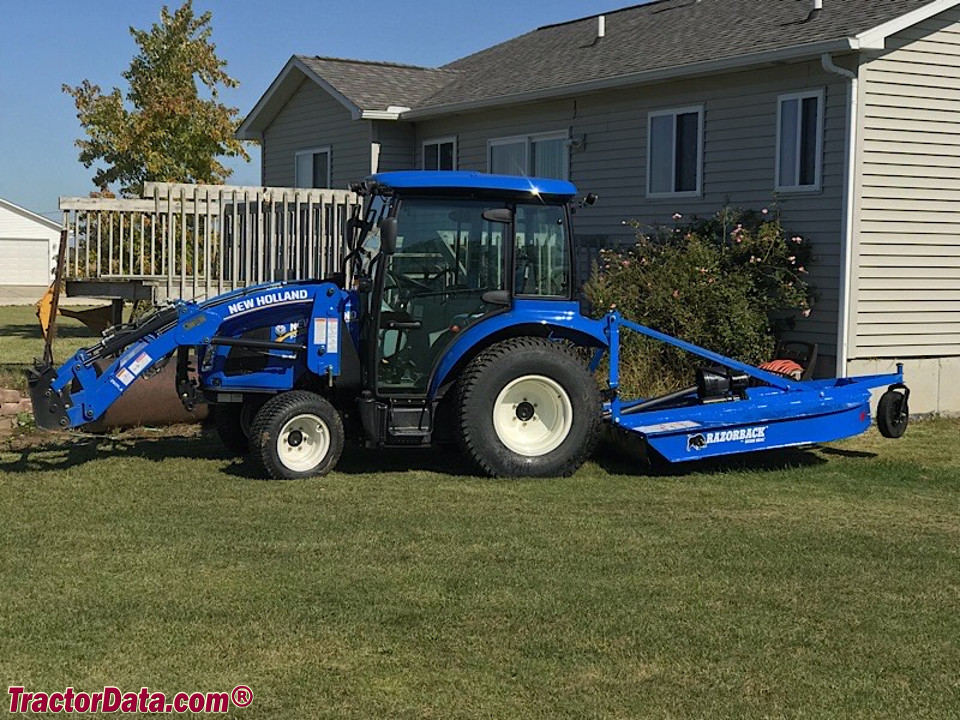

New Holland Boomer 37
|
|
| Production | |
| Manufacturer | New Holland |
| Compact Utility tractor | |
| Original price was $22,042 in 2014 | |
| New Holland Boomer 37 Engine | |
| Shibaura 1.5L 3-cyl diesel | |
| Fuel tank | 10.5 gal 39.7 L |
 Engine details ... | |
| New Holland Boomer 37 Transmissions | |
| hydrostatic | |
| 12-speed partially synchronized with mechanical shuttle | |
 Transmission details ... |
| New Holland Boomer 37 Power | |
| Engine (gross) | 36.2 hp 27.0 kW |
| Gear PTO (claimed) | 31.1 hp 23.2 kW |
| Hydro PTO (claimed) | 29.2 hp 21.8 kW |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | mechanical rear |
| Power steering | |
| Wet discs brakes | |
| Two-post folding ROPS. Cab optional with air-conditioning. | |
| Hydraulics | |
| Type | open center |
| Valves | 1 or 2 |
| Pump flow | 8.2 gpm 31.0 lpm |
| Gear Steering flow | 4.2 gpm 15.9 lpm |
| Hydro Steering flow | 5.3 gpm 20.1 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 1808 lbs 820 kg |
| Rear lift (at 24"/610mm) | 1345 lbs 610 kg |
| Rear Arms | adjustable draft link ends |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic |
| Rear PTO Type | 540 (1.375) |
| Mid PTO | independent |
| Mid PTO Type | 2000 |
| Dimensions & Tires | |
| Wheelbase | 66 inches 167 cm |
| Weight | 2804 to 2870 pounds |
| Front tire | 7-14 |
| Rear tire | 11.2-24 |
 Full dimensions and tires ... | |
| New Holland Boomer 37 attachments | |
| 66" mid-mount mower deck | |
| snowblower | |
| blade | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 85 |
| Battery CCA | 660 |
| Battery volts | 12 |
| Battery AH | 80 |
| References | |
 | |
| Boomer Compact Tractors published in 2014, by New Holland | |
| Boomer and Workmaster Series Tractors published in 2016, by New Holland |
