New Holland TM175
|
|
| Production | |
| Manufacturer | New Holland |
| Row-Crop tractor | |
| Built in Basildon, England | |
| Variants | |
| MXM175 | similar CaseIH model |
| New Holland TM175 Engine | |
| CNH 7.5L 6-cyl diesel | |
 Engine details ... |
| New Holland TM175 Transmission | |
| 19-speed full power shift | |
 Transmission details ... |
| New Holland TM175 Power | |
| Engine | 175 hp 130.5 kW |
| PTO (claimed) | 145 hp 108.1 kW |
| Drawbar (tested) | 123.6 hp 92.2 kW |
| PTO (tested) | 160.8 hp 119.9 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | electro-hydraulic |
| Power steering | |
| Differential hydraulic wet disc brakes | |
| Cab standard with heat and air-conditioning. Optional heated air-ride seat. | |
| Photos | |
 | |
 New Holland TM175 photos... | |
| Capacity | |
| Fuel | 105.1 gal 397.8 L |
| Hydraulic system | 26.4 gal 99.9 L |
| Hydraulics | |
| Type | closed center load sensing (CCLS) |
| Capacity | 26.4 gal 99.9 L |
| Pressure | 2750 psi 189.6 bar |
| Rear valves | 4 |
| Mid valves | 2 to 4 |
| Pump flow | 31.7 gpm 120.0 lpm |
| Total flow | 48.7 gpm 184.3 lpm |
| Steering flow | 17 gpm 64.3 lpm |
| Tractor hitch | |
| Rear Type | II/IIIN |
| Control | electronic lower-link draft control |
| Rear lift (at ends) | 17500 lbs 7938 kg |
| Front Hitch | II OptOptional |
| Front lift | 7208 lbs 3269 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic wet disc |
| Rear PTO Type | 540/1000 |
| Dimensions & Tires | |
| Wheelbase | 110.9 inches 281 cm |
| Weight | 15360 to 15795 pounds |
| Front tire | 14.9R30 |
| Rear tire | 20.8R42 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 120 |
| Battery CCA | 1300 |
| Battery volts | 12 |

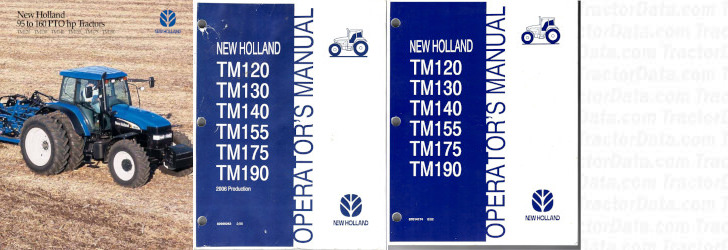

| References | |
 | |
| 95 to 160 PTO hp Tractors published in 2005, by New Holland | |
| Operator's Manual TM Tractors (82999263) published in 2006 | |
| Operator's Manual TM Tractors (87014174) published in 2002 |
