New Holland TM175 Transmission



New Holland TM175 tractor photo
2002 - 2007
TM Series
Row-Crop tractor
Series map:
TM155
TM175
TM190
155.0hp
175.0hp
190.0hp
Transmission
TransmissionPower Command
Typefull power shift
Gears19 forward and 6 reverse
Clutchelectro-hydraulic wet disc
Push-button power shift with power shuttle. Available in 30 KPH (18-speed) and 40 KPH (19-speed versions). Optional creeper range provides an addition 10 forward and 6 reverse gears.

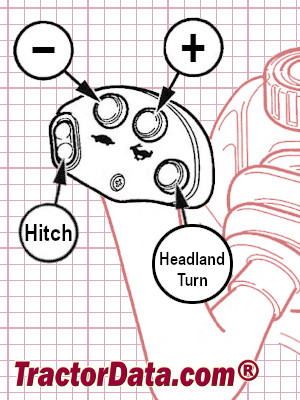

Shift Pattern
New Holland TM175 transmission controls
