New Holland TM130
|
|
| Production | |
| Manufacturer | New Holland |
| Row-Crop tractor | |
| Built in Basildon, England | |
| Variants | |
| MXM130 | similar CaseIH model |
| New Holland TM130 Engine | |
| CNH 7.5L 6-cyl diesel | |
 Engine details ... |
| New Holland TM130 Transmissions | |
| 24-speed partially synchronized | |
| 20-speed partially synchronized | |
| 18-speed six-speed power shift | |
| 18-speed full power shift | |
 Transmission details ... |
| New Holland TM130 Power | |
| Engine | 130 hp 96.9 kW |
| PTO (claimed) | 105 hp 78.3 kW |
| Drawbar (tested) | 95.1 hp 70.9 kW |
| PTO (tested) | 113.3 hp 84.5 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | electro-hydraulic |
| Power steering | |
| Differential hydraulic wet disc brakes | |
| Cab standard with heat and air-conditioning. Optional heated air-ride seat. | |
| Photos | |
| No photos of the New Holland TM130 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Capacity | |
| Fuel | 75.3 gal 285.0 L |
| Hydraulic system | 19.3 gal 73.1 L |
| 23.6 gal*With power shift transmission. 89.3 L | |
| Hydraulics | |
| Type | closed center load sensing (CCLS) |
| Capacity | 19.3 gal 73.1 L |
| 23.6 gal*With power shift transmission. 89.3 L | |
| Pressure | 2750 psi 189.6 bar |
| Rear valves | 4 |
| Mid valves | 2 to 4 |
| Pump flow | 28 gpm 106.0 lpm |
| Total flow | 44 gpm 166.5 lpm |
| Steering flow | 16 gpm 60.6 lpm |
| Tractor hitch | |
| Rear Type | II |
| Control | electronic lower-link draft control |
| Rear lift (at ends) | 8137 lbs 3690 kg |
| 9828 lbsOptOptional 4457 kg | |
| Front Hitch | II OptOptional |
| Front lift | 7208 lbs 3269 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic wet disc |
| Rear PTO Type | 540/1000 |
| Engine RPM | 540@1970 |
| 1000@2120 | |
| Dimensions & Tires | |
| Wheelbase | 107.2 inches 272 cm |
| Weight | 11283 to 11915 pounds |
| Front tire | 11.00-16 |
| 2WD Rear tire | 18.4R38 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 120 |
| Battery CCA | 1300 |
| Battery volts | 12 |
| References | |
 | |

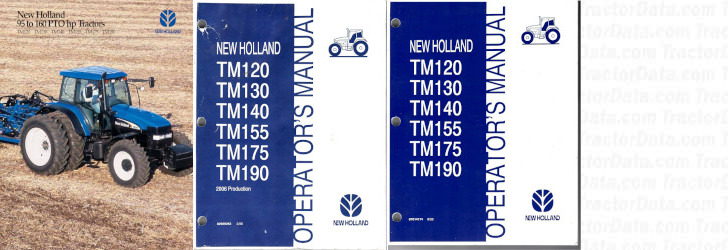

| 95 to 160 PTO hp Tractors published in 2005, by New Holland | |
| Operator's Manual TM Tractors (82999263) published in 2006 | |
| Operator's Manual TM Tractors (87014174) published in 2002 |
