New Holland row-crop TM130 Tests


New Holland row-crop TM130 tractor photo
2002 - 2007
TM Series
TM125
Series:TM120row-crop TM130TM140
OCED Tractor Test 2087

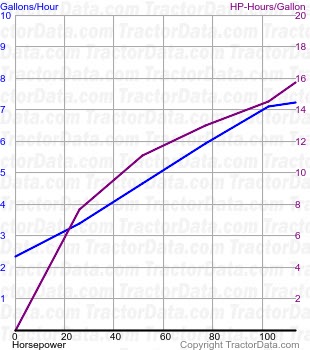

row-crop TM130 fuel use from test 430
OCED Tractor Test 2087
Diesel Range Command 4WD
December 1, 2002 - March 1, 2003
Link: OCED Tractor Test 2087 file
PTO performance
Power at rated engine speed:113.3 hp
84.5 kW
Fuel use:7.2 gal/hour
27.3 l/hour
Power at rated PTO speed:112.8 hp
84.1 kW
Fuel use:7.0 gal/hour
26.5 l/hour
Drawbar performance
Max power:95.1 hp
70.9 kW
Fuel use:7.2 gal/hour
27.3 l/hour
Gear 8 used for power test.
Max pull:12,550 lbs
5692 kg
Gear 1 used for pull test.
