New Holland TM130 Transmission
|
|
| Transmission options | |
| 24-speed partially synchronized | |
| 20-speed partially synchronized | |
| 18-speed six-speed power shift | |
| 18-speed full power shift |
| Transmission | |
| Transmission | Dual Command |
| Type | partially synchronized |
| Gears | 24 forward and 12 reverse |
| Four synchronized gears (1-4) in three ranges (A-C) with power shuttle and two-speed push button power shift. Shifts between ranges B/C are synchronized. Optional creeper ranges provides a total of 48 forward gears. | |

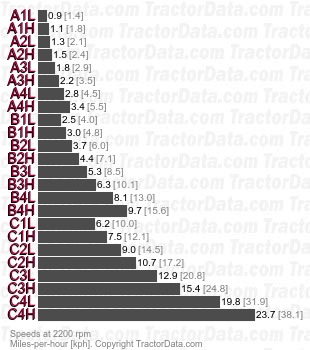

| Speeds | |
| With 40 KPH option and 18.4R38 rear tres. | |
|
| Shift Pattern | |
 |
| Transmission | |
| Transmission | Shuttle Command |
| Type | partially synchronized |
| Gears | 20 forward and 16 reverse |
| Five synchronized gears (1-5) in three ranges (A-D) with mechanical shuttle. Range shift from B to A is not synchronized. Optional creeper ranges provides a total of 40 forward gears. | |
| Speeds | |
| With 40 KPH option and 18.4R38 rear tres. | |
|
| Shift Pattern | |
 |
| Transmission | |
| Transmission | Range Command |
| Type | six-speed power shift |
| Gears | 18 forward and 6 reverse |
| Clutch | electro-hydraulic wet disc |
| Six power shift gears in three ranges with power shuttle. Available in 30 KPH (17-speed) and 40 KPH (18-speed versions). | |

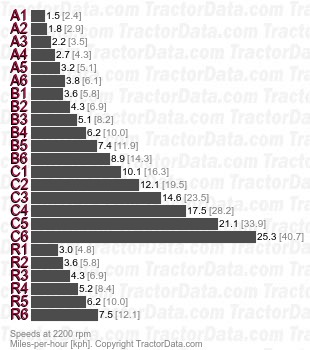

| Speeds | |
| With 40 KPH option and 18.4R38 rear tres. | |
|

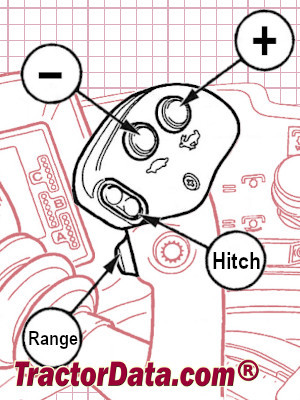

| Shift Pattern | |
 |
| Transmission | |
| Transmission | Power Command |
| Type | full power shift |
| Gears | 18 forward and 6 reverse |
| Clutch | electro-hydraulic wet disc |
| Push-button power shift with power shuttle. Available in 30 KPH (17-speed) and 40 KPH (18-speed versions). Optional creeper range provides an addition 10 forward and 6 reverse gears. | |

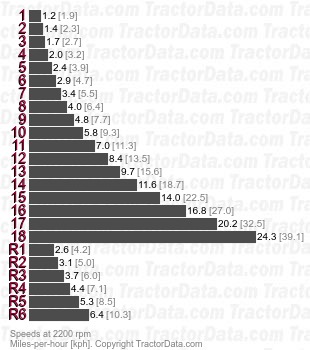

| Speeds | |
| With 40 KPH option and 18.4R38 rear tres. | |
|

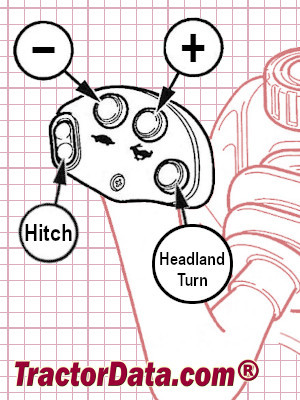

| Shift Pattern | |
 |
