Tractors > Ford > Powermaster 851
      -Brand search:

     Vintage Ford Tractors
    Vintage Ford Tractors

    Ford Powermaster 851

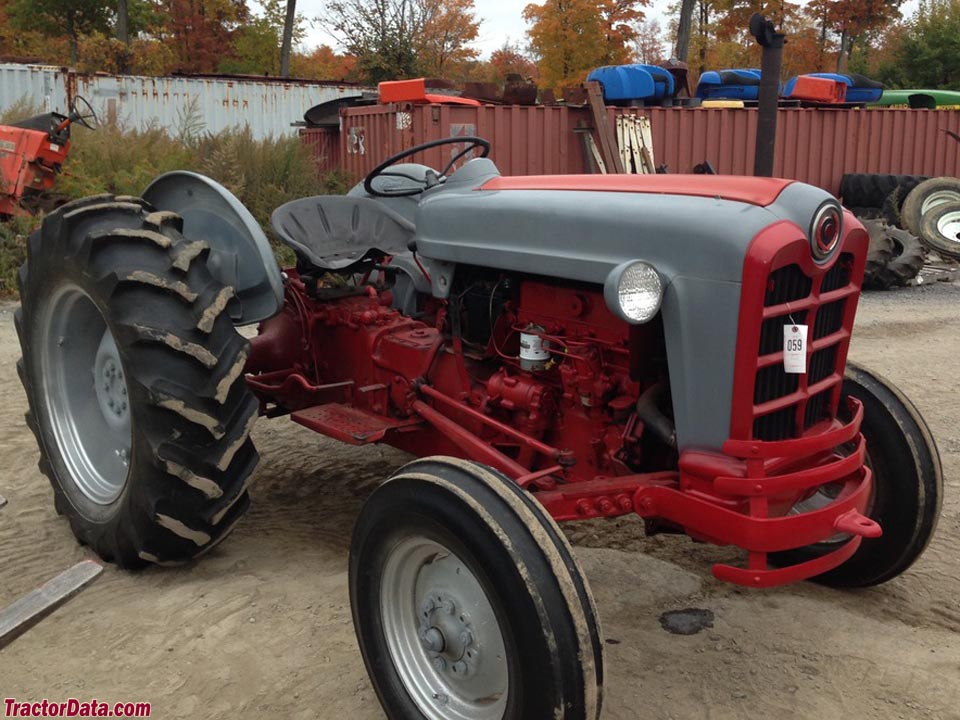

    Ford Powermaster 851 tractor photo  FO-20 I&T Manual: Ford 501, 600, 601, 700, 701, 800, 801, 900, 901, 1801, 2000, 4000
    I&T Shop Manual
    1957 - 1961   801 Powermaster Series
    Utility tractor
    Previous model:Ford 850



    Factory:Highland Park, Michigan, USA
    Original price (USD):$3,206 (1957)


    951:row-crop chassis
    811:Select-O-Speed, no PTO
    821:Four-speed, no PTO or 3-point
    861:Five speed, live PTO
    881:Select-O-Speed, dual-speed PTO

    Ford 851 Engines:

       Ford 2.8L 4-cyl gasoline
       Ford 2.8L 4-cyl LP gas
       Ford 2.8L 4-cyl diesel
    full engine details ...


    Fuel:17 gal [64.3 L]
    Hydraulic system:2 gal [7.6 L]

    3-Point Hitch:

    Rear Type:I
    Rear lift:1,250 lbs [567 kg]

    Power Take-off (PTO):

    Rear PTO:transmission
    Rear RPMs:540

    Dimensions & Tires:

    Wheelbase:74.5 inches [189 cm]
    Weight:3,500 lbs [1587 kg]
    Front tire:6.00x16
    Rear tire:12x28
    full dimensions and tires ...

    851 Serial Numbers:

    Location:Left side of tractor, on top of transmission case behind the starter.
    1957: 1001
    1958: 11977
    1959: 58312
    1960: 105943
    1961: 131427
    1962: 155531

    how to read serial numbers...


    Ford 851 Power:

    Engine:62.6 hp [46.7 kW]
    Belt (claimed):40 hp [29.8 kW]
    Plows:3 (14-inch)
    Drawbar (tested):41.54 hp [31.0 kW]
    Belt (tested):48.37 hp [36.1 kW]
    power test details ...


    Chassis:4x2 2WD
     power assist optional
    Brakes:differential mechanical expanding shoe
    Cab:Open operator station.


    Type:open center
    Capacity:2 gal [7.6 L]
    Pressure:2000 psi [137.9 bar]
    Total flow:4 gpm [15.1 lpm]


    Ground:postitive (6V)
     negative (12V)
    Charging system:generator
    Charging amps:20


    Volts:6 (gas/lp)
     12 (diesel)
    Amp-hours:80 (6V)
     135 (12V)
