Ford 951


Ford 951 tractor photo
1958 - 1962
901 Powermaster Series
Row-Crop tractor
Series map:
951
62.6hp
Production
ManufacturerFord
Row-Crop tractor
Built in Highland Park, Michigan, USA
The Ford 951 Powermaster has a five-speed transmission, hydraulics, and PTO.
Variants
851utility chassis
941four-speed
951five-speed
961five-speed, live PTO
971Select-O-Speed
981Select-O-Speed, dual-speed PTO
Ford 951 Engines
Ford 2.8L 4-cyl gasoline
Ford 2.8L 4-cyl LP gas
Ford 2.8L 4-cyl diesel
Engine details ...
Ford 951 Power
Engine62.6 hp
46.7 kW
Belt (claimed)40 hp
29.8 kW
Plows3 (14-inch)
Mechanical
Two-wheel drive
Steeringpower assist
Differential mechanical expanding shoe brakes
Open operator station.
Photos
No photos of the Ford 951 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel17 gal
64.3 L
Hydraulic system2 gal
7.6 L
Hydraulics
Typeopen center
Capacity2 gal
7.6 L
Pressure2000 psi
137.9 bar
Total flow4 gpm
15.1 lpm
Tractor hitch
Rear TypeI
Rear lift1,250 lbs
567 kg
Power Take-off (PTO)
Rear PTOtransmission
Rear PTO Type540
Dimensions & Tires
Weight3344 lbs
1516 kg
Front tire5.50-16
Rear tire12-28
Full dimensions and tires ...
951 Serial Number Location
Ford 951 serial number location
Left side of tractor, on top of transmission case behind the starter.
951 Serial Numbers
19571001
195811977
195958312
1960105943
1961131427
1962155531

FAQ: How to read a serial number table.
Electrical
Charging systemgenerator
Charging amps20
Battery volts6 (gas/lp)
 12 (diesel)
Battery AH80 (6V)
 135 (12V)
References

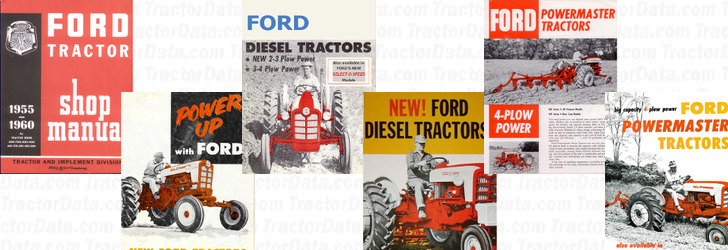

951 references literature
1955-1960 Tractor Shop Manual (SE-8175) published in 1961
Power Up with Ford published in 1957
Diesel Tractors published in 1959, by Ford
New Diesel Tractors published in 1958, by Ford
Ford Powermaster Tractors published in 1958
Ford Powermaster Tractors published in 1959
