Transmission: |
| Transmission: | Quad-Range
|
| Forward: | 16
|
| Reverse: | 6
|
| Oil capacity: | 64 qts [60.6 L]
|
| Comments: | Tractor must be stopped to select one of four ranges. Clutchless power shift between speeds 1-2 and 3-4 in range. A synchronized shift (using clutch) can be made between 2 and 3 in range.
|

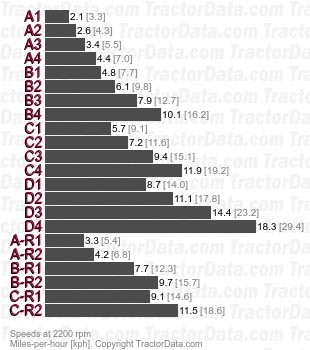

| Speeds: | 18.4-38 rear tires
| Gear | 2200 rpm | | A1 | 2.08mph [3.3kph] | | A2 | 2.65mph [4.3kph] | | A3 | 3.44mph [5.5kph] | | A4 | 4.37mph [7.0kph] | | B1 | 4.79mph [7.7kph] | | B2 | 6.08mph [9.8kph] | | B3 | 7.92mph [12.7kph] | | B4 | 10.05mph [16.2kph] | | C1 | 5.68mph [9.1kph] | | C2 | 7.21mph [11.6kph] | | C3 | 9.38mph [15.1kph] | | C4 | 11.91mph [19.2kph] | | D1 | 8.72mph [14.0kph] | | D2 | 11.07mph [17.8kph] | | D3 | 14.40mph [23.2kph] | | D4 | 18.26mph [29.4kph] | | A-R1 | 3.33mph [5.4kph] | | A-R2 | 4.23mph [6.8kph] | | B-R1 | 7.67mph [12.3kph] | | B-R2 | 9.74mph [15.7kph] | | C-R1 | 9.08mph [14.6kph] | | C-R2 | 11.54mph [18.6kph] |
|
| |
Transmission: |
| Transmission: | Power Shift
|
| Forward: | 15
|
| Reverse: | 4
|
| Oil capacity: | 42 qts [39.7 L] (2WD)
54 qts [51.1 L] (4WD)
|
| Comments: | Optional transmission. Full (clutchless) power shift can be made between gears, forward and reverse.
|

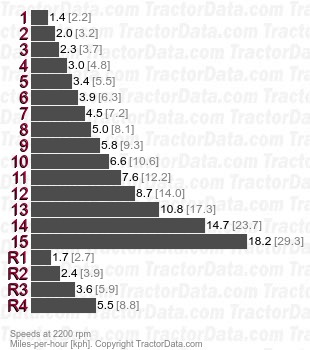

| Speeds: | 18.4-38 rear tires.
| Gear | 2200 rpm | | 1 | 1.37mph [2.2kph] | | 2 | 1.96mph [3.2kph] | | 3 | 2.32mph [3.7kph] | | 4 | 2.98mph [4.8kph] | | 5 | 3.44mph [5.5kph] | | 6 | 3.90mph [6.3kph] | | 7 | 4.50mph [7.2kph] | | 8 | 5.04mph [8.1kph] | | 9 | 5.80mph [9.3kph] | | 10 | 6.59mph [10.6kph] | | 11 | 7.59mph [12.2kph] | | 12 | 8.71mph [14.0kph] | | 13 | 10.78mph [17.3kph] | | 14 | 14.70mph [23.7kph] | | 15 | 18.18mph [29.3kph] | | R1 | 1.67mph [2.7kph] | | R2 | 2.40mph [3.9kph] | | R3 | 3.64mph [5.9kph] | | R4 | 5.48mph [8.8kph] |
|
| |
