John Deere 4255 Transmission


John Deere 4255 tractor photo
1988 - 1992
4055 Series
Row-Crop tractor
4250
Series:405542554455
7700
Transmissions overview
16-speed partial power shift
15-speed full power shift
Transmission
Transmission:John Deere Quad Range
Type:partial power shift
Gears:16 forward and 6 reverse
Clutch:hydraulic wet disc
2WD Oil capacity:64 qts
60.6 L
4WD Oil capacity:68.8 qts
65.1 L
Four gears (1-4) in four ranges (A-D) with high-low power shift.
Speeds
With 18.4-38 rear tires.

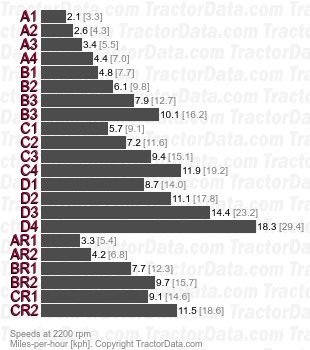

4255 Quad Range partial power shift speeds
Transmission
Transmission:John Deere Power Shift
Type:full power shift
Gears:15 forward and 4 reverse
Clutch:hydraulic wet disc
2WD Oil capacity:53.9 qts
51.0 L
4WD Oil capacity:63.4 qts
60.0 L
Speeds

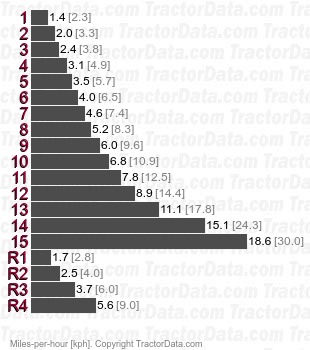

4255 Power Shift full power shift speeds
