| | 1983 - 1988 |
| 50 Series | | Row-Crop tractor |
|
Series map:
4050
4250
4450
130.0hp
144.0hp
158.2hp
| Engine Detail |
| John Deere |
| turbocharged diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 466 ci
7.6 L
|
| Bore/Stroke | 4.56x4.75 inches
116 x 121 mm
|
| Power | 144 hp
107.4 kW
|
| Air cleaner | dry
|
| Compression | 15.8:1
|
| Rated RPM | 2200
|
| Firing order | 1-5-3-6-2-4
|
| Starter volts | 12
|
| Oil capacity | 18 qts
17.0 L
|

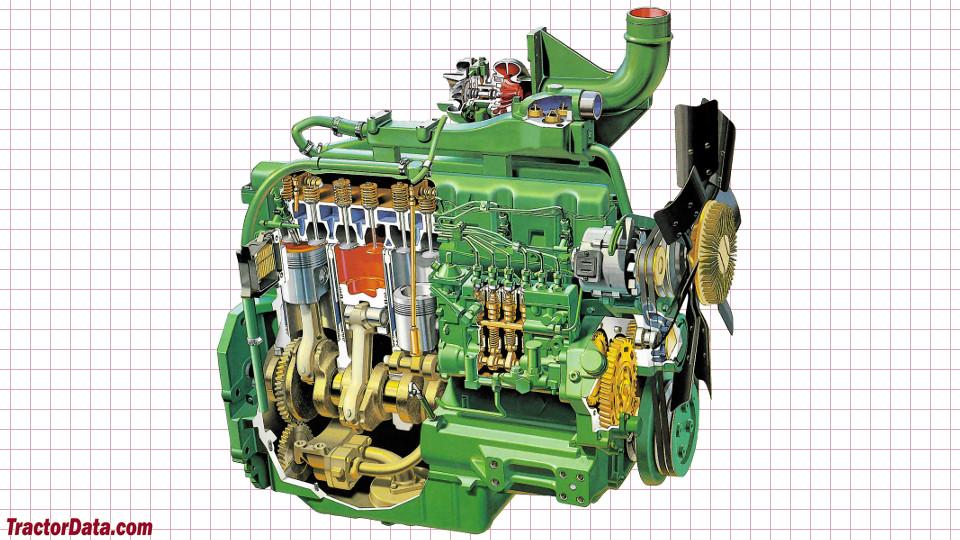

| John Deere 4250 Engine |
 |
