John Deere 110



John Deere 110 tractor photo
1963 - 1974
Model year
100 Series
Garden tractor
Series map:
110
112
8.0hp
10.0hp
Production
ManufacturerJohn Deere
Garden tractor
Built in Horicon, Wisconsin, USA
Original price was $1,115 in 1974
For the 1968 model year, the John Deere 110 was restyled with a square fender deck.
Variants
110Hhydraulic lift
John Deere 110 Engines
8HP Kohler 305cc 1-cyl gasoline
10HP Kohler 390cc 1-cyl gasoline
Fuel tank1.9 gal
7.2 L
Engine details ...
John Deere 110 Transmission
4-speed gear with mechanical CVT
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Manual brakes
Open operator station.
Photos
Square-fender John Deere 110 garden tractor.
John Deere 110 photos...
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual
Dimensions & Tires
Wheelbase44 inches
111 cm
Weight615 to 632 pounds
Front tire16x6.50-8
Rear tire8-12
Full dimensions and tires ...
John Deere 110 attachments
38" mid-mount mower deck
46" mid-mount mower deck
snowblower
blade
front-end loader
Attachment details ...
110 Serial Number Location

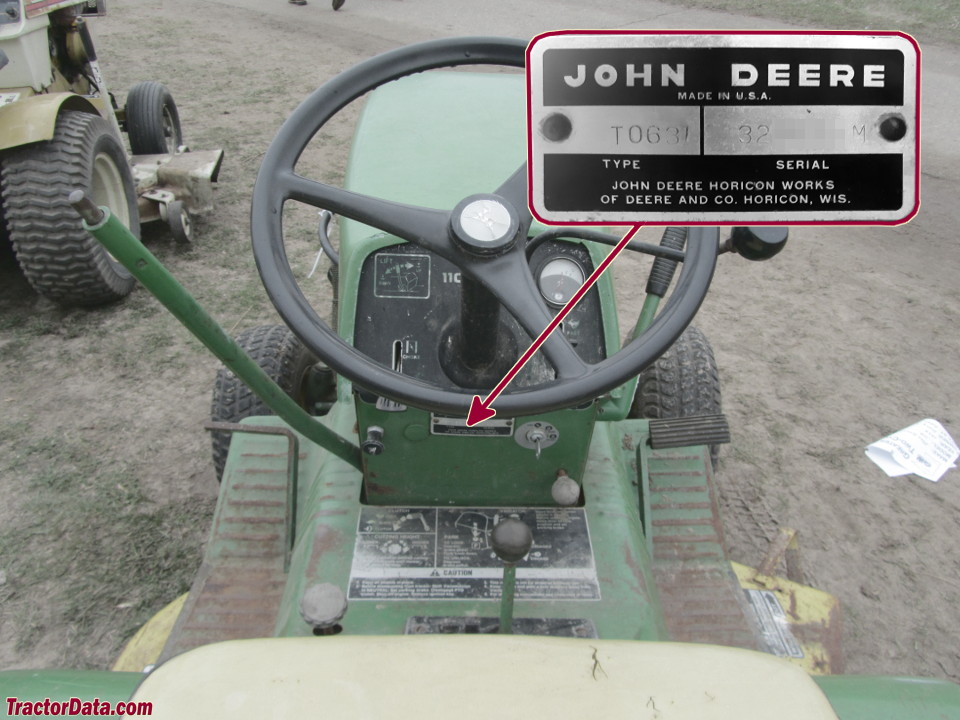

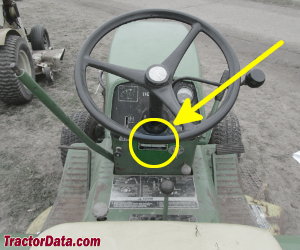

John Deere 110 serial number location
Serial number plate below the steering column on the Deere 110.
110 Serial Numbers
19632550
19643551
196515001
196640001
196765001
1968100001
1969130001
1970160000
1971185001
1972250001
1973272001
1974310001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery volts12
Battery AH24
Questions
I am having a very hard time finding parts for my 110 (T0633/294251 with the10HP). The how-to-find-your-serial-number picture shows my tractor with the manual lever/handle PTO engagement while other pictures neglect to have these. I need the steel cable that runs to the PTO pulley that the lever engages. The mix of tractor and part numbers seem to never mesh to find parts for this tractor.

There were a number of changes to the 110 over its production life. The steering column PTO lever you have was only used in the final two years (tractor serial number 272001 and higher) and there were three versions of that assembly.

Email: Peter@TractorData.com
References
110 references literature
The John Deere 10 Series New Generation Tractors published in 2004, by Hain Publishing
John Deere Lawn & Garden Tractors and Equipment published in 1968
Lawn and Garden Equipment published in 1970, by John Deere
Lawn and Garden Tractors and Riding Mowers published in 1973, by John Deere
Loaders for John Deere Lawn & Garden Tractors published in 1970, by Johnson
Loaders for John Deere Lawn & Garden Tractors published in 1971, by Johnson
110 manuals literature
Operator's Manual 110 and 112 (OM-M43692) published in 1969
Operator's Manual 110 (OM-M47701) published in 1974
Service Manual 110 and 112 Lawn and Garden Tractors Serial No. (100,001-250,000) (SM-2088) published in 1969
Service Manual 110 Lawn and Garden Tractor Serial No. (250,001-) (SM-2101) published in 1974
Operator's Manual 31 Integral Rotary Tiller (OMM49210)
Operator's Manual 37A Snowthrower (OMM89616)
Operator's Manual 39 and 47 Rotary Mowers (OMM48953)
Operator's Manual 43C and 54C Center Blade (OMM45478) published in 1970
