| | 1963 - 1974 |
|
| 100 Series | | Garden tractor |
|
Series map:
110
112
8.0hp
10.0hp
| Transmission |
| Transmission | Peerless 2300
|
| Type | belt-driven gear with mechanical CVT
|
| Gears | 4 forward and 1 reverse
|
| Oil capacity | 0.75 qts
0.7 L
|
| The transmission features four forward gears plus reverse, with a variable speed control. The clutch is used to shift between gears. Once in gear, the variable speed lever adjusts the drive ratio to provide a range of speeds that can be adjusted on the move. |

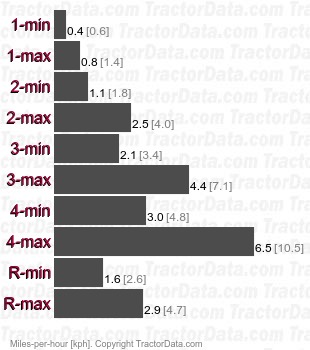

| Speeds |
|
| Shift Pattern |
 |
| 110 Transmission Controls |
 |
| 1 | Clutch-Brake (early)
|
| 1 | Clutch (late)
|
| 2 | Throttle
|
| 3 | Variator
|
| 4 | Brake (late)
|
| 5 | Parking brake
|
| 6 | Gear shift
|
