Simplicity Legacy 20

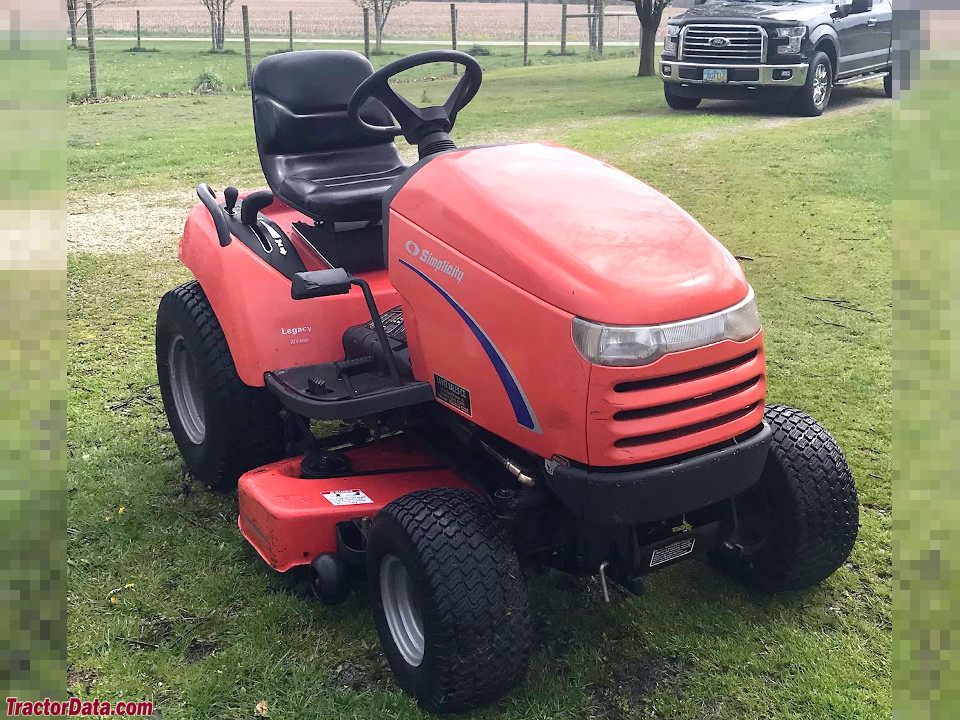

Simplicity Legacy 20 lawn tractor photo
1998 - 2003
Legacy Series
Garden tractor
Series map:
Legacy 20
Legacy 20LC
20.0hp
20.0hp
Production
ManufacturerSimplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price$7,850 (1998 )
$8,200 (2001 )
Variants
2920Hsimilar Massey Ferguson model
2020Hsimilar AGCO model
Simplicity Legacy 20 Engine
20HP Kohler 622cc 2-cyl gasoline
Fuel tank6 gal
22.7 L
Engine details ...
Mechanical
Two-wheel drive
Final drivesspur gear
Differential lockmechanical rear
Power steering
Disc brakes
Open operator station. Hard-side weather cab optional. Two-post ROPS available.
Hydraulics
Pressure950 psi
65.5 bar
Pump flow3 gpm
11.4 lpm
Tractor hitch
Rear Type0 OptOptional
Rear lift450 lbs
204 kg
Power Take-off (PTO)
Rear PTOindependent OptOptional
Clutchelectric
Rear PTO Type540 (1.375)
 2000 (1.0)
Front PTOindependent
Clutchelectro-magnetic
Dimensions & Tires
Wheelbase55 inches
139 cm
Weight802 lbs
363 kg
Front tire18x8.5-8
Rear tire23x10.5-12
Full dimensions and tires ...
Simplicity Legacy 20 attachments
48" mid-mount mower deck
54" mid-mount mower deck
60" mid-mount mower deck
snowblower
blade
front-end loader
backhoe
Attachment details ...
Legacy 20 Serial Numbers
Location:Left side of tractor frame, ahead of operator platform.
Electrical
Groundnegative
Charging systemalternator
Charging amps15
Battery CCA500
Battery volts12
References
Legacy 20 references literature
Lawn & Garden Equipment published in 1998, by Simplicity
The way to a beautiful lawn. published in 2000, by Simplicity
The Way To A Beautiful Lawn published in 2003, by Simplicity
Product Guide Fall 1998 published by Simplicity
Legacy Commercial Garden Tractor published in 1997, by Simplicity
Operator's Manual Legacy / 2000 / 2900 Series (1717573) published in 2003
2002 Product Specifications published by Simplicity
