Simplicity SunStar 20


Simplicity SunStar 20 lawn tractor photo
1987 - 1997
SunStar Series
Garden tractor
Series map:
SunStar 18
SunStar 20
18.0hp
20.0hp
Production
ManufacturerSimplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Simplicity SunStar 20 Engines
20HP Kohler 770cc 2-cyl gasoline
20HP Kohler 622cc 2-cyl gasoline
Fuel tank4.25 gal
16.1 L
Engine details ...
Mechanical
Two-wheel drive
Differential lockmechanical rear *Differential lock on models built from 1987 to 1994.
Steeringhydraulic power
Mechanical drum brakes
Open operator station.
Tractor hitch
Rear Type0 OptOptional
Power Take-off (PTO)
Rear RPM2000 OptOptional
Front PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase51 inches
129 cm
Weight873 to 1108 pounds
Front tire16x6.50-8
Rear tire26x12.00-12
Full dimensions and tires ...
Simplicity SunStar 20 attachments
48" mid-mount mower deck
60" mid-mount mower deck
snowblower
blade
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemflywheel alternator
Charging amps15
Battery CCA400
Battery volts12
References

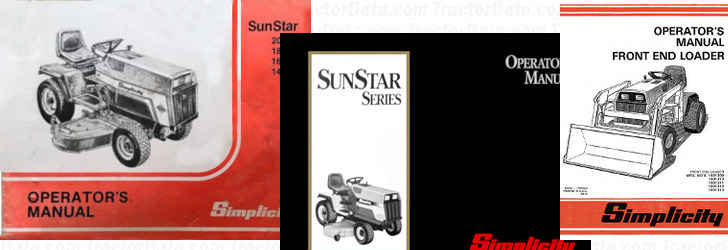

SunStar 20 references literature
Outdoor Power Equipment published in 1987, by Simplicity
Outdoor Power Equipment published in 1990, by Simplicity
Outdoor Power Equipment published in 1992, by Simplicity
Tractors & Riding Mowers published in 1995, by Simplicity
Tractors & Riding Mowers published in 1996, by Simplicity
SunStar (850351) published in 1986
