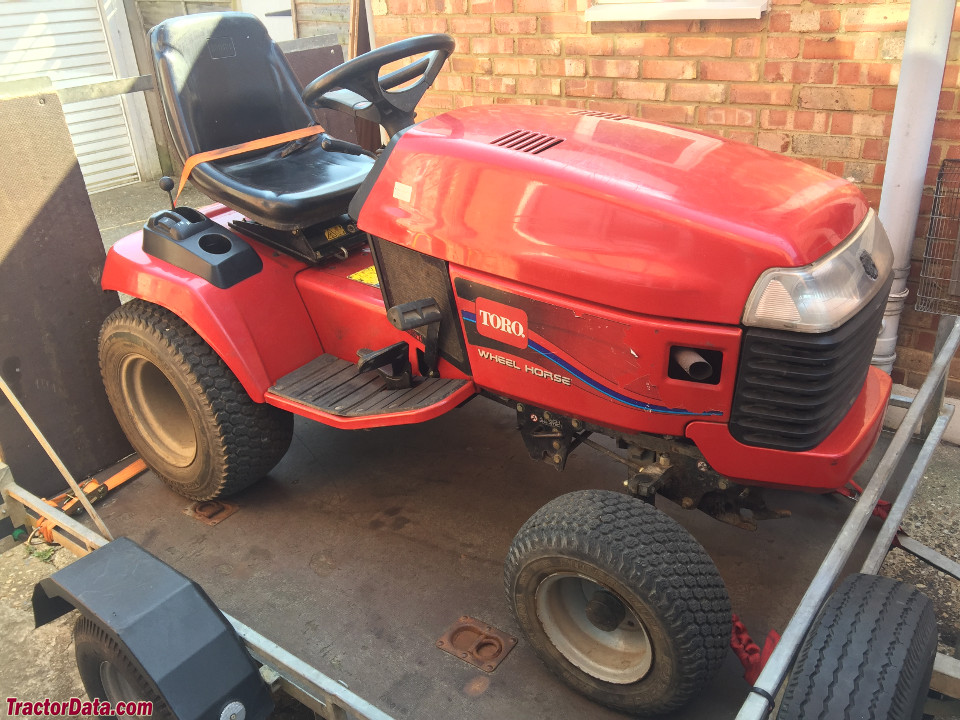

Toro Wheel Horse 520xi
|
|
| Production | |
| Manufacturer | Toro |
| Garden tractor | |
| Original price was $6,269 in 1999 | |
| Toro 520xi Engine | |
| 20HP Kohler 624cc 2-cyl gasoline | |
| Fuel tank | 4.25 gal 16.1 L |
 Engine details ... | |
| Toro 520xi Transmission | |
| hydrostatic | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station with adjustable seat. |
| Photos | |
 | |
 Toro 520xi photos... | |
| Power Take-off (PTO) | |
| Front PTO | independent |
| Front PTO Type | electric |
| Dimensions & Tires | |
| Wheelbase | 52 inches 132 cm |
| Weight | 1014 lbs 459 kg |
| Front tire | 16x7.5-8 |
| Rear tire | 23x10.50-12 |
 Full dimensions and tires ... | |
| Toro 520xi attachments | |
| 44" mid-mount mower deck | |
| 48" mid-mount mower deck | |
| 52" mid-mount mower deck | |
| 60" mid-mount mower deck | |
| snowblower | |
| blade | |
| front-end loader | |
 Attachment details ... |
| 520xi Serial Number Location | |
 | |
| Serial number decal on the rear fender of the 520xi, below the seat on the left. |
| Electrical | |
| Ground | negative |
| Charging amps | 15 |
| Battery CCA | 380 |
| Battery volts | 12 |
| References | |
 | |
| 5xi Series Tractor Service Manual published in 1997 | |
| Lawn and Garden Tractors published in 1998, by Toro | |
| Lawn and Garden Tractors published in 1999, by Toro | |
| Lawn and Garden Tractors published in 2001, by Toro |
