Toro Wheel Horse 520xi Transmission

Toro Wheel Horse 520xi lawn tractor photo
1998 - 2006
5xi Series
Garden tractor
Series:518xiWheel Horse 520xi520Lxi
TransmissionEaton Uni-Drive 1100
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity6 qts
5.7 L

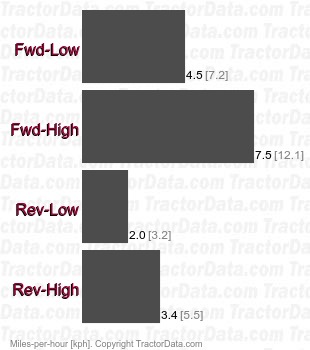

Wheel Horse 520xi Uni-Drive 1100 shaft-driven hydrostatic speeds
Toro 520xi Transmission

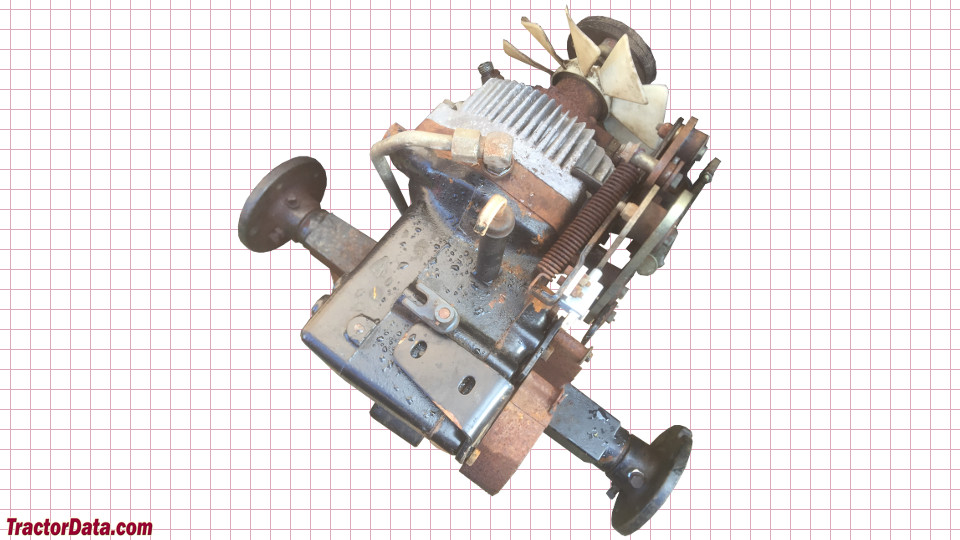

Toro 520xi transmission image
