Cub Cadet 1204

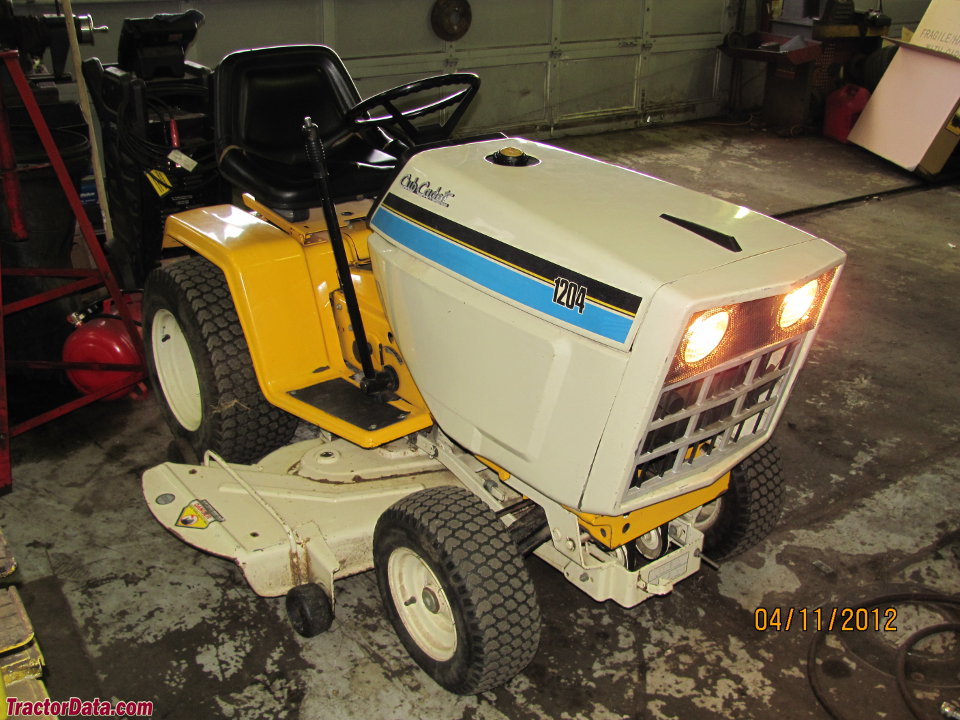

Cub Cadet 1204 lawn tractor photo
1987 - 1988
Garden tractor
Series map:
1204
1210
12.0hp
12.0hp
Production
ManufacturerCub Cadet (a part of MTD)
Garden tractor
Variants
1204gear-drive
1210hydrostatic
1211hydro with hydraulic lift
Cub Cadet 1204 Engine
12HP Kohler 476cc 1-cyl gasoline
Fuel tank4 gal
15.1 L
Engine details ...
Cub Cadet 1204 Transmission
4-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Dual disk brakes
Open operator station.
Photos
Cub Cadet 1204
Cub Cadet 1204 photos...
Dimensions & Tires
Wheelbase44 inches
111 cm
Front tire16x6.50-8
Rear tire23x10.50-12
Full dimensions and tires ...
Cub Cadet 1204 attachments
38" mid-mount mower deck
44" mid-mount mower deck
snowblower
blade
Attachment details ...
1204 Serial Numbers
1987756300
1988767352
1989779097

FAQ: How to read a serial number table.
1204 Serial Location
Cub Cadet 1204 serial number location
Left side of tractor frame.
Electrical
Groundnegative
Charging systemalternator
Charging amps15
Battery volts12
References
1204 references literature
Garden Tractors published in 1987, by Cub Cadet
Cub Cadet Garden Tractors published in 1988
