Cub Cadet 1204 Engine


Cub Cadet 1204 tractor photo
1987 - 1988
Garden tractor
Series map:
1204
1210
12.0hp
12.0hp
Engine Detail
Kohler
gasoline
1-cylinder
air-cooled
Displacement476 cc
29.07 ci
Bore/Stroke3.38x3.25 inches
86 x 83 mm
Power (gross)12 hp
8.9 kW
Idle RPM1800-3600
Starterelectric
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.009 inches (cold)
0.229 mm
Exhaust valve clearance0.018 inches (cold)
0.457 mm
Engine Oil

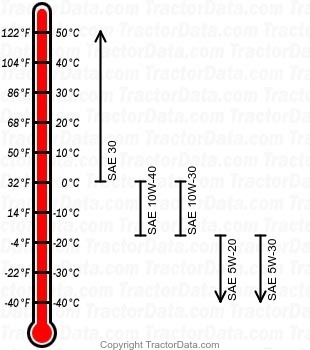

1204 gasoline engine oil chart
Oil capacity2 qts
1.9 L
