Lawn Tractors > Cub Cadet > 3235

Cub Cadet 3235



Cub Cadet 3235 tractor photo
2000 - 2003
3000 Series
Garden tractor
Series map:
3208
3235
3240
20.0hp
23.0hp
22.0hp
Production
ManufacturerCub Cadet (a part of MTD)
Garden tractor
Original price was $6,099 in 2000
Cub Cadet 3235 Engines
23HP Kohler 673cc 2-cyl gasoline
25HP Kohler 721cc 2-cyl gasoline
Fuel tank4.5 gal
17.0 L
Engine details ...
Cub Cadet 3235 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Differential lockmechanical rear
Power steering
Disc brakes
Open operator station.
Photos

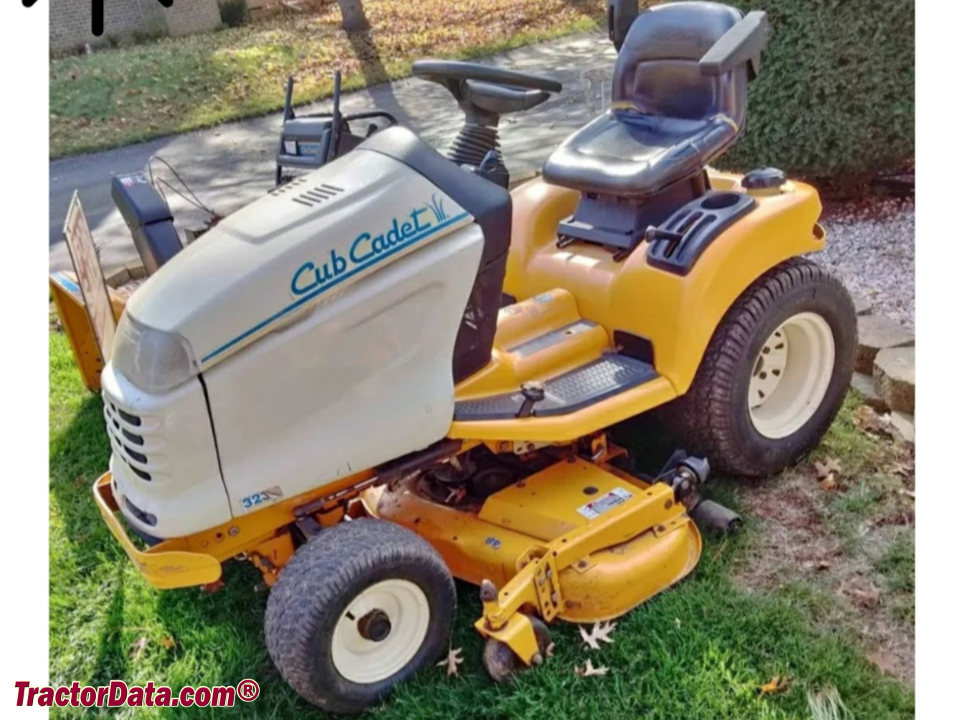

Cub Cadet 3235 garden tractor, left side.
Cub Cadet 3235 photos...
Tractor hitch
Rear Type0 OptOptional
Power Take-off (PTO)
Front PTOindependent
Clutchelectro-pneumatic idler
Front PTO Typeshaft (SAE BB)
Dimensions & Tires
Wheelbase49.5 inches
125 cm
Weight803 lbs
364 kg
Front tire16x7.5-8
Rear tire24x10.5-12
Full dimensions and tires ...
Cub Cadet 3235 attachments
44" mid-mount mower deck
48" mid-mount mower deck
54" mid-mount mower deck
60" mid-mount mower deck
snowblower
blade
Attachment details ...
3235 Serial Number Location
Cub Cadet 3235 serial number location
Serial number decal on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemflywheel alternator
Charging amps15
Battery CCA435
Battery volts12
References
3235 references literature
Series 3000 Tractors published in 1999, by Cub Cadet
Series 3000 Tractors published in 2001, by Cub Cadet
3000 Series Service Manual (770-10227) published in 1999
Outdoor Power Equipment 2003 published by Cub Cadet
