John Deere 332

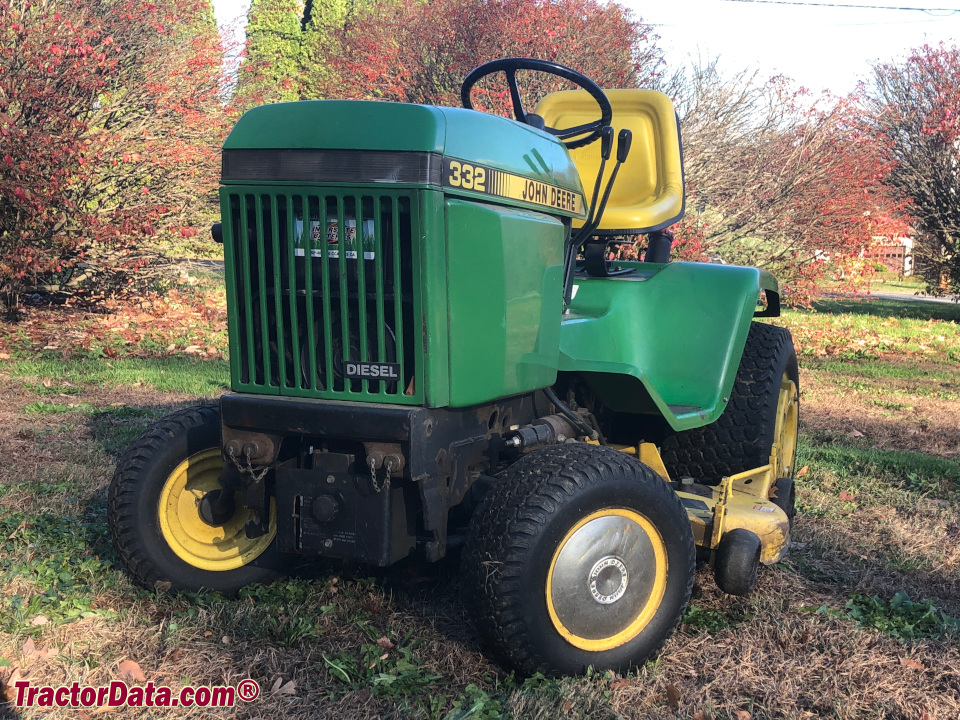

John Deere 332 lawn tractor photo
1987 - 1992
300 Series
Garden tractor
Series map:
322
332
18.0hp
16.0hp
Production
ManufacturerJohn Deere
Garden tractor
Built in Horicon, Wisconsin, USA
The John Deere 332 has been referred to as the "diesel 318" due to the 332's similarity to the popular gasoline-powered model. The 332 used the same engine as the model 330 it replaced, but added several features including power steering, dual hydraulics, and individual left/right brakes.
Variants
318air-cooled gas
322liquid-cooled gas
332diesel
John Deere 332 Engine
16HP Yanmar 658cc 3-cyl diesel
Engine details ...
Mechanical
Two-wheel drive
Power steering
Differential mechanical brakes
Open operator station.
Capacity
Fuel4.5 gal
17.0 L
Hydraulic system1.25 gal
4.7 L
Hydraulics
Capacity1.25 gal
4.7 L
Front valves2
Tractor hitch
Rear Type0 OptOptional
Controldirectional control
Rear lift (at 24"/610mm)640 lbs
290 kg
Power Take-off (PTO)
Rear PTOindependent OptOptional
Clutchelectric
Rear PTO Type2000
Front PTOindependent
Clutchelectric
Front PTO Typepulley
Dimensions & Tires
Wheelbase46 inches
116 cm
Weight900 lbs
408 kg
Front tire16x6.50-8
Rear tire23x10.5-12
Full dimensions and tires ...
John Deere 332 attachments
38" mid-mount mower deck
46" mid-mount mower deck
50" mid-mount mower deck
snowblower
blade
Attachment details ...
332 Serial Numbers
Location:Serial number plate below the 332's dashboard console.
1987420001
1988475001
1989595001
1990010001
1991100001
1992110001
Final120000

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps20
Battery CCA342
Battery volts12
Battery GroupU1
References
332 references literature
Lawn & Garden Tractors published in 1988, by John Deere
Lawn & Garden Tractors published in 1989, by John Deere
Lawn & Garden Equipment published in 1990, by John Deere
Lawn & Garden Tractors published in 1990, by John Deere
Lawn & Garden Tractors published in 1991, by John Deere
Grounds Care & Recreation Products Sales Manual published in 1989, by John Deere

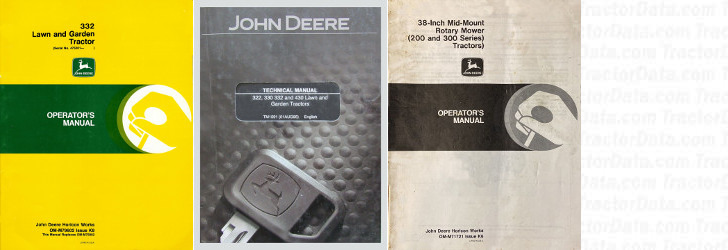

332 manuals literature
Operator's Manual 332 (OM-M79602) published in 1988
Technical Manual 322, 330, 332 and 430 Lawn and Garden Tractors. (TM1591) published in 1995
Operator's Manual 38-Inch Mid-Mount Rotary Mower (200 and 300 Series) (OMM71721) published in 1986
