John Deere 322



John Deere 322 lawn tractor photo
1988 - 1992
300 Series
Garden tractor
Series map:
318
322
332
18.0hp
18.0hp
16.0hp
Production
ManufacturerJohn Deere
Garden tractor
Built in Horicon, Wisconsin, USA
Original price was $6,800 in 1990
The John Deere model 322 was, basically, a liquid-cooled version of the popular 318 garden tractor. The 322 used a three-cylinder Yanmar engine in place of the Onan twin found on the 318.
Variants
318air-cooled gas
322liquid-cooled gas
332diesel
John Deere 322 Engine
18HP Yanmar 658cc 3-cyl gasoline
Engine details ...
John Deere 322 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Power steering
Mechanical drum brakes
Open operator station.
Photos
Right profile view of the Deere 322
John Deere 322 photos...
Capacity
Fuel4.5 gal
17.0 L
Hydraulic system1.625 gal
6.2 L
Hydraulics
Capacity1.625 gal
6.2 L
Valves2
Tractor hitch
Rear Type0 OptOptional
Controldirectional control
Power Take-off (PTO)
Rear PTOindependent OptOptional
Clutchelectric
Rear PTO Type2000
Front PTOindependent
Clutchelectric
Front PTO Typepulley
Dimensions & Tires
Wheelbase46 inches
116 cm
Weight900 lbs
408 kg
Front tire16x6.50-8
Rear tire23x10.50-12
Full dimensions and tires ...
John Deere 322 attachments
38" mid-mount mower deck
46" mid-mount mower deck
50" mid-mount mower deck
snowblower
blade
front-end loader
Attachment details ...
322 Serial Number Location

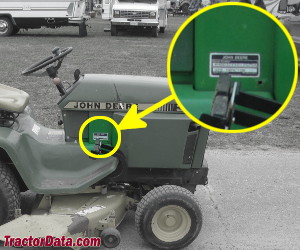

John Deere 322 serial number location
Right side of tractor, above brake pedals
322 Serial Numbers
1988475001
1989595001
1990010001
1991100001
1992110001
Final120000

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps20
Battery volts12
Battery GroupBCI U1
References
322 references literature
Operator's Manual 322 Lawn and Garden Tractor (OMM95296) published in 1989
Lawn & Garden Tractors published in 1988, by John Deere
Lawn & Garden Tractors published in 1989, by John Deere
Lawn & Garden Equipment published in 1990, by John Deere
Lawn & Garden Tractors published in 1990, by John Deere
Lawn & Garden Tractors published in 1991, by John Deere
Grounds Care & Recreation Products Sales Manual published in 1989, by John Deere
Technical Manual 322, 330, 332 and 430 Lawn and Garden Tractors. (TM1591) published in 1995
