International Harvester 100C
|
|
| Production | |
| Manufacturer | International Harvester |
| Crawler Loader | |
| International Harvester 100C Engine | |
| International Harvester 3.4L 4-cyl diesel | |
 Engine details ... |
| International Harvester 100C Transmissions | |
| 4-speed shuttle | |
| 8-speed gear | |
| 3-speed full power shift | |
 Transmission details ... |
| International Harvester 100C Power | |
| Engine (gross) | 60 hp 44.7 kW |
| Engine (net) | 56 hp 41.8 kW |
| Mechanical | |
| Drive | crawler |
| Final drives | spur gear |
| Wet disc brakes | |
| Open operator station. Cab available with heater. | |
| Photos | |
| No photos of the International Harvester 100C are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Capacity | |
| Fuel | 30 gal 113.6 L |
| Hydraulic system | 15 gal 56.8 L |
| Hydraulics | |
| Type | open center |
| Capacity | 15 gal 56.8 L |
| Pressure | 2000 psi 137.9 bar |
| Pump flow | 22.4 gpm (gear) 84.8 lpm |
| 24.8 gpm (gear with backhoe) 93.9 lpm | |
| 21.8 gpm (PS) 82.5 lpm | |
| 24.1 gpm (PS with backhoe) 91.2 lpm | |
| Dimensions & Tracks | |
| Weight | 14892 lbs 6755 kg |
| 12-inch tracks | |
 Full dimensions and tracks ... | |
| International Harvester 100C attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| 100C Serial Numbers | |
| 1969 | 501 |
| 1970 | 510 |
| 1971 | 666 |
| 1972 | 974 |
| 1973 | 1188 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Charging system | alternator |
| Charging amps | 22 |
| Battery volts | 12 |
| Battery AH | 96 |

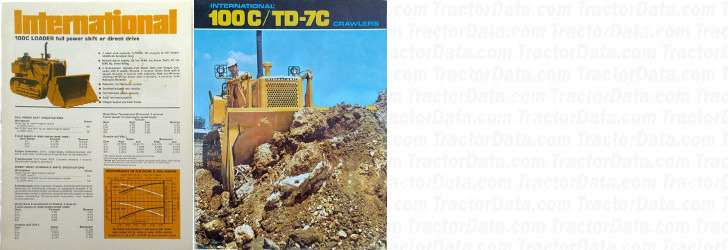

| References | |
 | |
| 100C Loader published in 1970, by International Harvester | |
| 100C/TD-7C Crawlers published in 1971, by International Harvester |
