Ford 4610 LCG

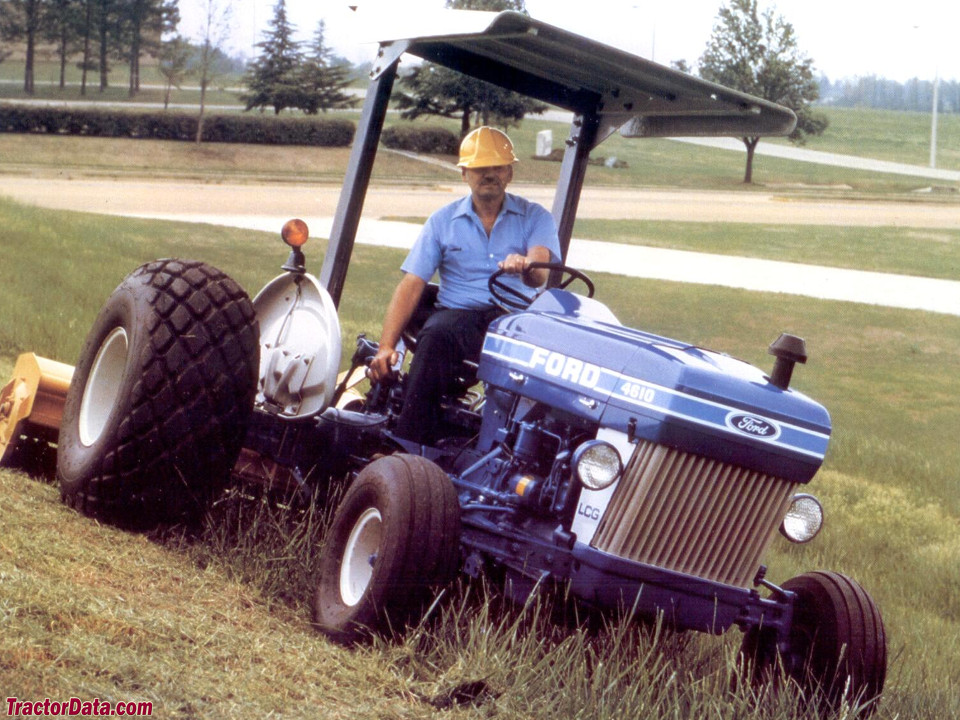

Ford 4610 LCG tractor photo
1983 - 1989
Industrial tractor
Series map:
2910 LCG
4610 LCG
40.5hp
60.0hp
Production
ManufacturerFord
Industrial tractor
Variants
4610utility tractor
Ford 4610 LCG Transmissions
8-speed dual range
8-speed synchromesh
Transmission details ...
Ford 4610 LCG Power
Engine (gross)63 hp
47.0 kW
Engine60 hp
44.7 kW
PTO (claimed)36.6 hp
27.3 kW
Mechanical
Two-wheel drive
Differential lockfoot-engaged
Steeringpower assist
Wet disc brakes
Two-post ROPS.
Capacity
Fuel16 gal
60.6 L
Hydraulic system12.1 gal
45.8 L
Steering2.3 qts
2.2 L
Hydraulics
Typeopen center
Capacity12.1 gal
45.8 L
Pressure2500 psi
172.4 bar
Pump flow8.5 gpm
32.2 lpm
 5.6 gpm (optional aux. pump)
21.2 lpm
Steering flow3.6 gpm
13.6 lpm
Steering cap.2.3 qts
2.2 L
Tractor hitch
Rear TypeI
Rear lift (at 24"/610mm)2,526 lbs
1145 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
Electrical
Charging systemalternator
Charging amps32
Battery CCA750
Battery volts12
Battery AH128
References

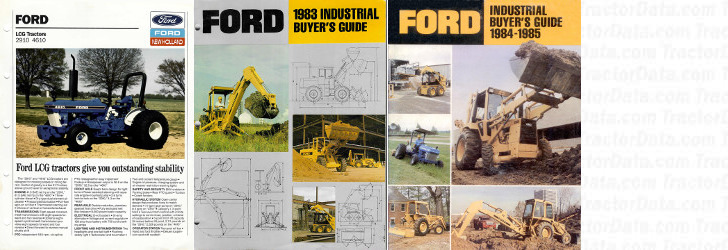

4610 LCG references literature
2910 - 4610 LCG Tractors published in 1988, by Ford
1983 Industrial Buyer's Guide published by Ford
Industrial Buyer's Guide 1984-1985 published by Ford
