Ford 2910 LCG
| | 1983 - 1989 |
| Industrial tractor |
|
Series map:
2910 LCG
4610 LCG
40.5hp
60.0hp
| Production |
| Manufacturer | Ford
|
| Industrial tractor |
| Ford 2910 LCG Power |
| Engine (gross) | 43 hp
32.1 kW
|
| Engine | 40.5 hp
30.2 kW
|
| PTO (claimed) | 36.6 hp
27.3 kW
|
| Mechanical |
| Two-wheel drive |
| Differential lock | foot-engaged
|
| Steering | power assist
|
| Wet disc brakes |
| Two-post ROPS. |
| Photos |
| No photos of the Ford 2910 LCG are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Capacity |
| Fuel | 13 gal
49.2 L
|
| Hydraulic system | 6.15 gal
23.3 L
|
| Steering | 1.87 qts
1.8 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 6.15 gal
23.3 L
|
| Pressure | 2500 psi
172.4 bar
|
| Pump flow | 7.7 gpm
29.1 lpm
|
| | 5.5 gpm (optional aux. pump)
20.8 lpm
|
| Steering flow | 3.6 gpm
13.6 lpm
|
| Steering cap. | 1.87 qts
1.8 L
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift (at 24"/610mm) | 2,111 lbs
957 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540
|
| Electrical |
| Charging system | alternator
|
| Charging amps | 32
|
| Battery CCA | 750
|
| Battery volts | 12
|
| Battery AH | 128
|

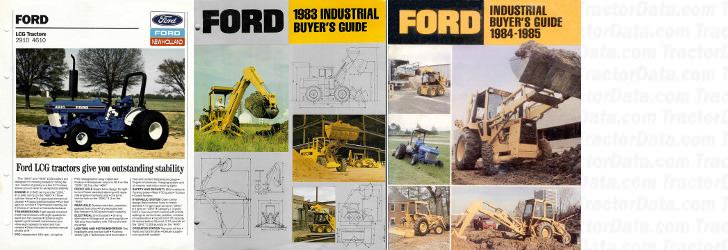

| References |
 |
| 2910 - 4610 LCG Tractors published in 1988, by Ford |
| 1983 Industrial Buyer's Guide published by Ford |
| Industrial Buyer's Guide 1984-1985 published by Ford |
