International Harvester 3414
|
|
| Production | |
| Manufacturer | International Harvester |
| Type | Industrial tractor |
| Variants | |
| 414 | farm tractor |
| International Harvester 3414 Engines | |
| International Harvester 2.4L 4-cyl gasoline | |
| International Harvester 2.5L 4-cyl diesel | |
 Engine details ... |
| International Harvester 3414 Transmissions | |
| 8-speed | |
| 6-speed | |
 Transmission details ... |
| International Harvester 3414 Power | |
| Engine (gross) | 43.5 hp 32.4 kW |
| Diesel Drawbar (claimed) | 32.6 hp 24.3 kW |
| Gasoline Drawbar (claimed) | 31.4 hp 23.4 kW |
| Diesel PTO (claimed) | 36 hp 26.8 kW |
| Gasoline PTO (claimed) | 36.5 hp 27.2 kW |
| Mechanical | |
| Chassis | 4x2 2WD |
| Steering | hydrostatic power |
| Brakes | differential mechanical disc |
| Cab | Open operator station. |
| Capacity | |
| Fuel | 13.7 gal 51.9 L |
| Hydraulic system | 5.5 gal 20.8 L |
| 8.5 gal (with 3-point hitch) 32.2 L | |
| Hydraulics | |
| Capacity | 5.5 gal 20.8 L |
| 8.5 gal (with 3-point hitch) 32.2 L | |
| Tractor hitch | |
| Rear Type | I |
| Power Take-off (PTO) | |
| Rear PTO | continuous |
| Rear RPM | 540 |
| Dimensions & Tires | |
| Wheelbase | 72.5 inches 184 cm |
| Weight | 5200 lbs 2358 kg |
| Front tire | 7.50-16 |
| Rear tire | 14.9-24 |
 Full dimensions and tires ... | |
| International Harvester 3414 attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| 3414 Serial Numbers | |
| 1961 | 501 |
| 1962 | 502 |
| 1963 | 1572 |
| 1964 | 3126 |
| 1965 | 4889 |
| 1966 | 6742 |
| 1967 | 7668 |
FAQ: How to read a serial number table. | |
| 3414 Serial Location | |
 | |

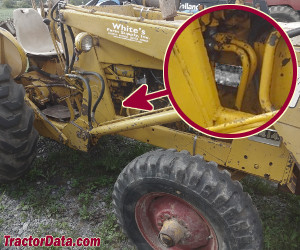

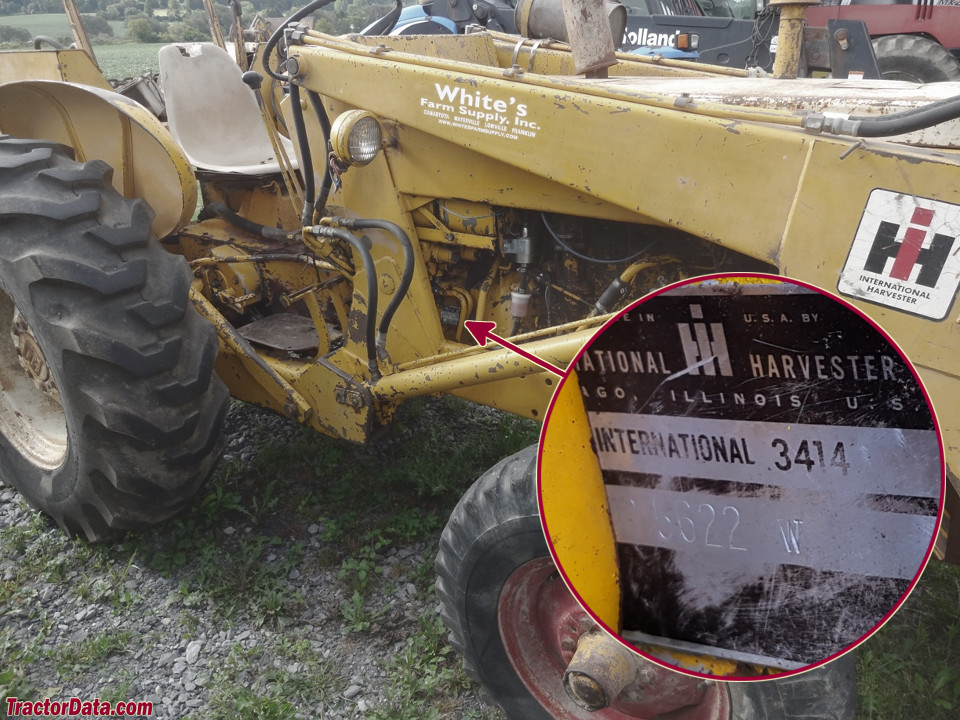

| Serial number plate on the right side of the 3414, on the tractor's clutch housing. |
| References | |
 | |
| Industrial Tractors & Equipment Buyers Guide published in 1962, by International Harvester | |
| Buyer's Guide 1965 published by International Harvester | |
| Buyer's Guide 1967 published by International Harvester |
