| | 1961 - 1968 |
| Industrial tractor |
|
| Transmissions overview |
| 8-speed |
| 6-speed |
| Transmission |
| Gears | 8 forward and 2 reverse
|
| Oil capacity | 20 qts
18.9 L
|
| Four gears, plus reverse, with normal and high ranges. |

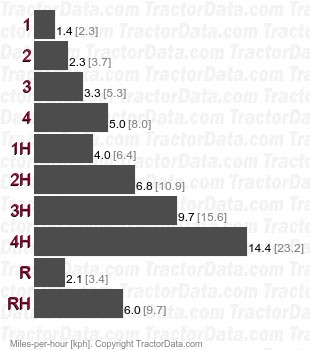

| Speeds |
| With 14.9-24 rear tires. |
|
| Transmission |
| Transmission | Forward and Reverse Drive
|
| Gears | 8 forward and reverse
|
| Oil capacity | 20 qts
18.9 L
|
| Four gears with high and low ranges. |
| Speeds |
| With 14.9-24 rear tires. |
|
| Transmission |
| Transmission | Torque Converter
|
| Gears | 6 forward and reverse
|
| Oil capacity | 20 qts
18.9 L
|
| Three gears with normal and high ranges. Torque converter provides forward-reverse changes without clutching. |

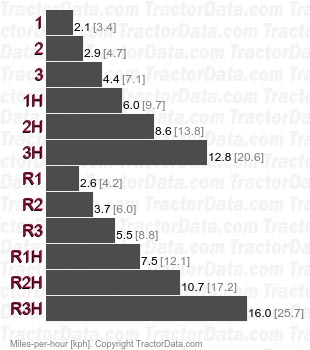

| Speeds |
| With 14.9-24 rear tires. |
|
