John Deere 5700
1996 - 1999 Utility tractor
Series map:
5600
5700
55.9kw
63.4kw
Production Manufacturer John Deere
Utility tractor Built in Horizontina, Brazil
John Deere 5700 Power Engine 85 hp63.4 kW
PTO (claimed) 72 hp53.7 kW
Mechanical Two- or four-wheel drive Differential lock mechanical rear
Power steering Hydraulic wet disc brakes ROPS.
Photos No photos of the John Deere 5700 are currently available. To submit yours, email it to Peter@TractorData.com . Photos may only be used with the permission of the original photographer.
Hydraulics Type open center
Pump flow 10.6 gpm40.1 lpm
Tractor hitch Rear Type II
Control top-link draft sensing
Rear lift (at 24"/610mm) 3968 lbs1799 kg
Power Take-off (PTO) Rear PTO independent
Rear PTO Type 540 (1.375)
Electrical Ground negative
Charging amps 52
Charging volts alternator
Battery CCA 700
Battery volts 12
Battery AH 100

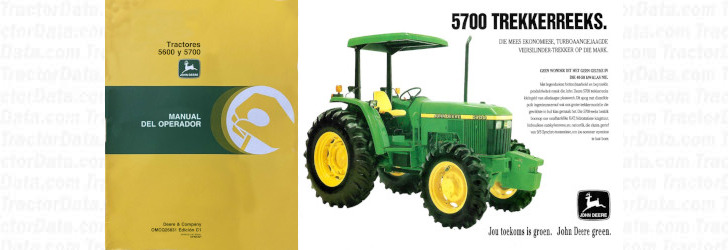

References Operator's Manual 5600 and 5700 Tractors (OMCQ26831) published in 1998 5700 Tractor Series published in 1999, by John Deere
