Tractors > John Deere > 5700

John Deere 5700 Engine



John Deere 5700 tractor photo
1996 - 1999
Utility tractor
Series map:
5600
5700
55.9kw
63.4kw
Engine Detail
John Deere 4039T
turbocharged diesel
4-cylinder
liquid-cooled inline
Displacement239 ci
3.9 L
Bore/Stroke4.19x4.33 inches
106 x 110 mm
Power85 hp
63.4 kW
Compression17.8:1
Rated RPM2400
Operating RPM1600-2400
Torque223 lb-ft
302.4 Nm
Torque RPM1400
Starterelectric
Starter volts12
Oil capacity12.7 qts
12.0 L
Coolant capacity15.9 qts
15.0 L

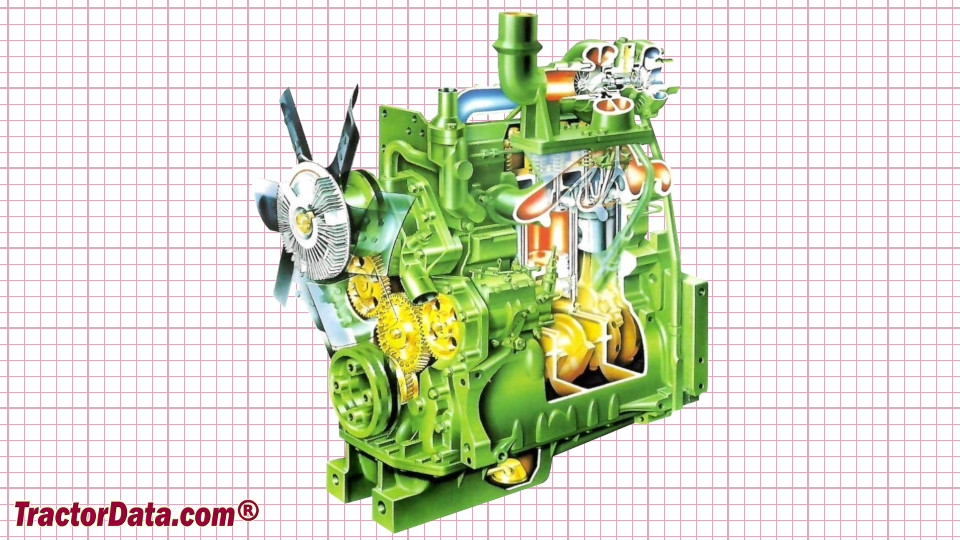

John Deere 5700 Engine
John Deere 5700 engine image
