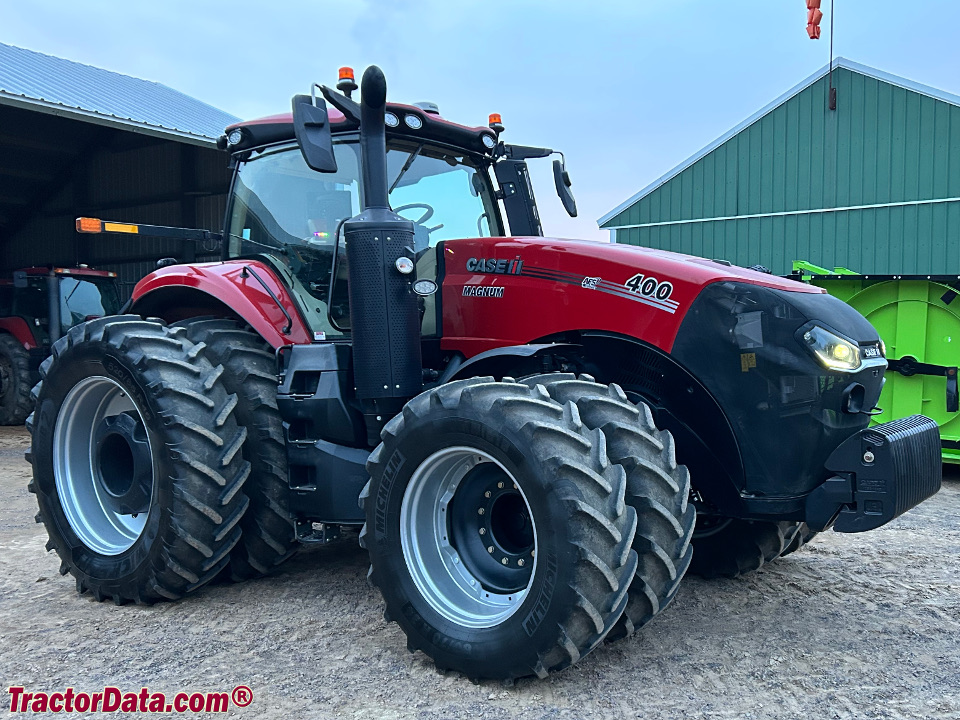

CaseIH Magnum 400
| | 2019 - |
| Magnum Series | | Row-Crop tractor |
|
| Production |
| Manufacturer | CaseIH (a part of CNH)
|
| Row-Crop tractor |
| Built in Racine, Wisconsin, USA |
| Original price was $603,480 in 2024 |
| CaseIH Magnum 400 Power |
| Engine (gross) | 391 hp
291.6 kW
|
| Engine (max) | 429 hp
319.9 kW
|
| PTO (claimed) | 345 hp
257.3 kW
|
| Drawbar (tested) | 309.80 hp
231.0 kW
|
| PTO (tested) | 390.64 hp
291.3 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Differential lock | electro-hydraulic rear
|
| Power steering |
| Hydraulic wet disc brakes |
| Trailer brakes | hydraulic OptOptional
|
| | pneumatic OptOptional
|
| Cab standard with air-conditioning. AFS |
| Hydraulics |
| Type | pressure flow compensating (PFC)
|
| Pressure | 3046 psi
210.0 bar
|
| Valves | 5 or 6
|
| Pump flow | 44 gpm
166.5 lpm
|
| | 59 gpmOptOptional
223.3 lpm
|
| | 75 gpmOptOptional
283.9 lpm
|
| Tractor hitch |
| Rear Type | IV/III
|
| Rear lift | 19900 lbs
9026 kg
|
| Front lift | 9426 lbs
4275 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 1000 (1.75)
|
| | 540/1000 (1.375)OptOptional
|
| Engine RPM | 540@1592
|
| | 1000@1803
|
| Front PTO | independent
|
| Front PTO Type | 1000 (1.375)
|
| | 540 (1.375)
|
| | 1000 (1.75)
|
| Engine RPM | 1000@1804
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 240
|
| Batteries | 2
|
| Battery volts | 12
|
| References |
 |
| Magnum AFS Connect published in 2019, by CaseIH |
| AFS Connect Magnum published in 2021, by CaseIH |
