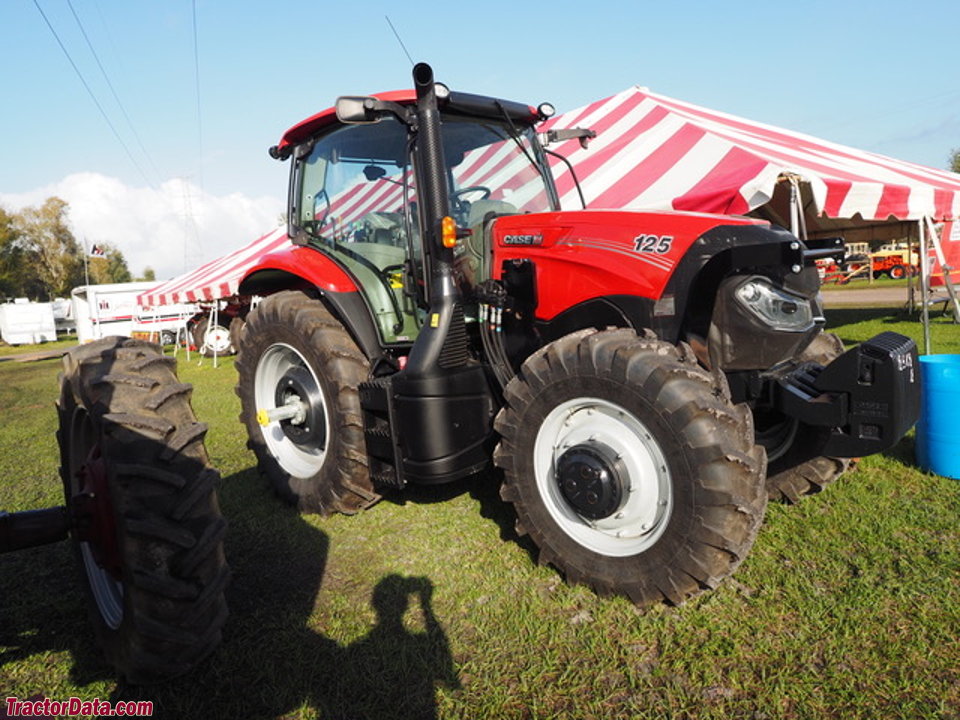

CaseIH Maxxum 125
|
|
| Production | |
| Manufacturer | CaseIH |
| Utility tractor | |
| Original price was $110,392 in 2017 | |
| Variants | |
| Maxxum 125 | standard |
| Maxxum 125MC | premium |
| CaseIH Maxxum 125 Engine | |
| FPT 4.5L 4-cyl diesel | |
 Engine details ... |
| CaseIH Maxxum 125 Transmission | |
| 16-speed partial power shift | |
 Transmission details ... |
| CaseIH Maxxum 125 Power | |
| Engine (gross) | 125 hp 93.2 kW |
| Engine (max) | 155 hp 115.6 kW |
| PTO (claimed) | 105 hp 78.3 kW |
| Drawbar (tested) | 77 hp 57.4 kW |
| PTO (tested) | 119.5 hp 89.1 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | inboard planetary |
| Power steering | |
| Hydraulic wet disc brakes | |
| Trailer brakes | hydraulic OptOptional |
| pneumatic OptOptional | |
| Cab standard with air-conditioning. | |
| Photos | |
 | |
 CaseIH Maxxum 125 photos... | |
| Capacity | |
| Fuel | 51.5 gal 194.9 L |
| 57.5 gal*Optional, with auxiliary tank. 217.6 L | |
| 60.8 gal*Optional, max tank. 230.1 L | |
| Exhaust fluid (DEF) | 10.4 gal 39.4 L |
| Hydraulic system | 19.5 gal 73.8 L |
| Hydraulics | |
| Type | open center |
| pressure-flow compensated OptOptional | |
| Capacity | 19.5 gal 73.8 L |
| Rear valves | 2 to 4 |
| Mid valves | 0 to 3 |
| Pump flow | 21.1 gpm 79.9 lpm |
| 29.8 gpm*Optional, PFC system. 112.8 lpm | |
| SCV flow | 19.8 gpm 74.9 lpm |
| Total flow | 33.5 gpm 126.8 lpm |
| 42.2 gpm*With optional PFC system. 159.7 lpm | |
| Steering flow | 12.4 gpm 46.9 lpm |
| Tractor hitch | |
| Rear Type | II |
| IIIN/II OptOptional | |
| Control | electronic lower-link draft sensing |
| Rear lift (at 24"/610mm) | 6200 lbs 2812 kg |
| 6900 lbsOptOptional 3129 kg | |
| Rear Arms | telescopic link ends |
| Front Hitch | optional |
| Drawbar | Cat. 3 |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 (1.375) |
| Front PTO | independent OptOptional |
| Clutch | 1000:1895 |
| Front PTO Type | 1000 (1.375) |
| Dimensions & Tires | |
| 2WD Wheelbase | 104.4 inches 265 cm |
| 4WD Wheelbase | 104 inches 264 cm |
| Weight | 10825 to 11375 pounds |
| Front tire | 380/85R28 |
| Rear tire | 460/85R38 |
 Full dimensions and tires ... | |
| Electrical | |
| Charging amps | 120 |
| 150 OptOptional | |
| 200 OptOptional | |
| Battery CCA | 800 |
| 1300 OptOptional | |
| Battery volts | 12 |
| Battery AH | 176 |
| References | |
 | |
| Maxxum Series Tractors published in 2016, by CaseIH |
