CaseIH Maxxum 125 Engine


CaseIH Maxxum 125 tractor photo
2007 - 2023
Model year
Maxxum Series
Utility tractor
Series:Maxxum 115Maxxum 125Maxxum 135

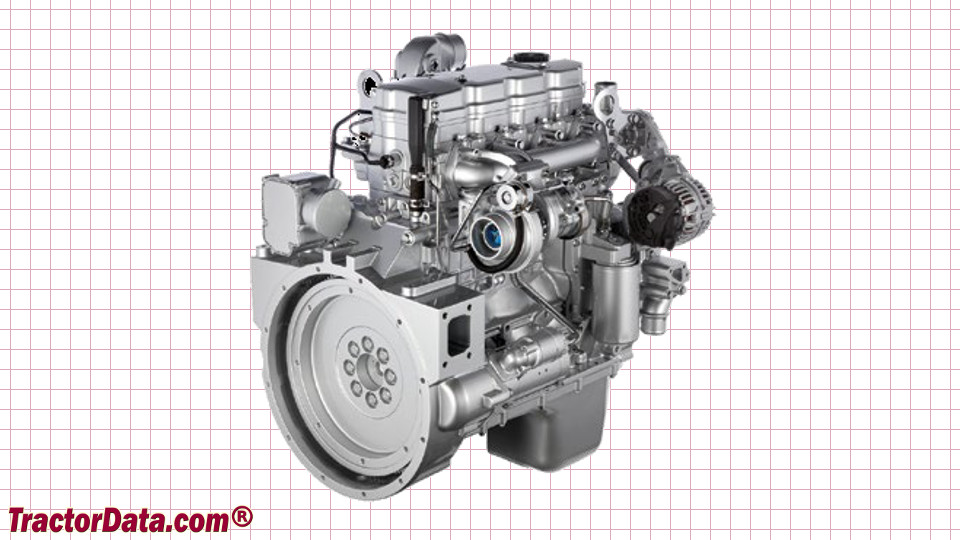

Engine Detail
FPT
turbocharged air-to-air intercooled diesel
4-cylinder 16-valve
liquid-cooled
Displacement:274 ci
4.5 L
Bore/Stroke:4.095x5.20 inches
104 x 132 mm
Emissions:Tier 4
Emission control:selective catalytic reduction with diesel exhaust fluid
Rated Power (ECE R120):125 hp
93.2 kW
Maximum Power (ECE R120):155 hp
115.6 kW
Fuel system:electronic high-pressure common rail
Cooling system:viscous fan
Pre-heating:grid heater
 block heater*Optional
Rated RPM:2200
Starter:electric
Starter volts:12
Oil capacity:16 qts
15.1 L
