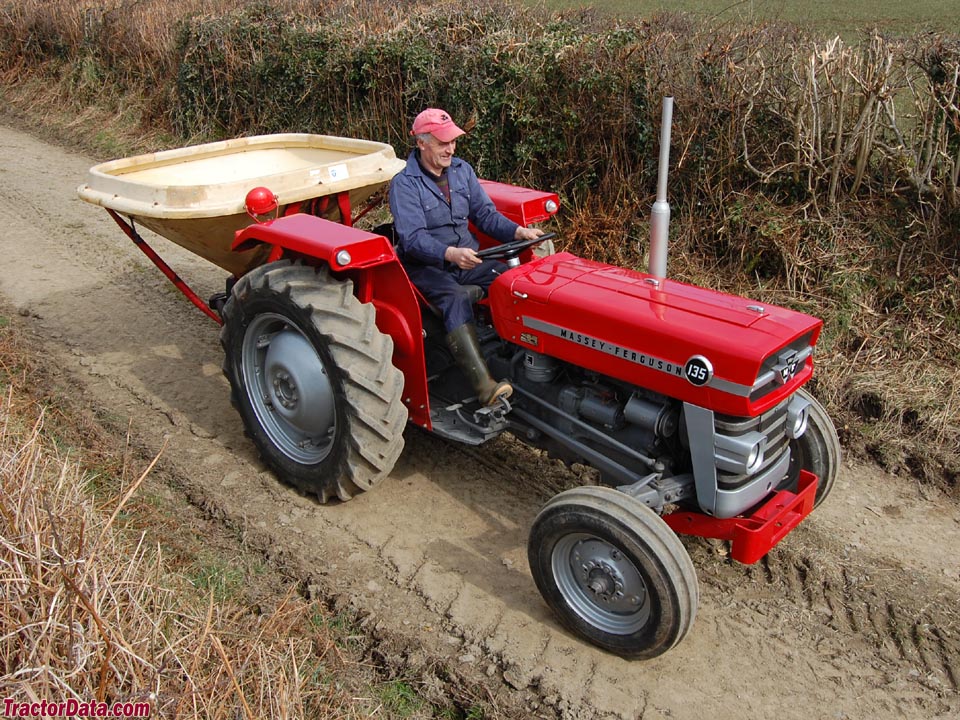

Massey Ferguson 135
|
|
| Production | |
| Manufacturer | Massey Ferguson |
| Utility tractor | |
| Built in Coventry, England | |
| Variants | |
| 2135 | industrial tractor |
| Massey Ferguson 135 Engines | |
| Perkins 2.5L 3-cyl diesel | |
| Continental 2.4L 4-cyl gasoline | |
| Perkins 2.5L 3-cyl gasoline | |
| Fuel tank | 10.2 gal 38.6 L |
| 12.6 gal (late) 47.7 L | |
 Engine details ... | |
| Massey Ferguson 135 Transmissions | |
| 6-speed | |
| 8-speed | |
| 12-speed partial power shift | |
 Transmission details ... |
| Massey Ferguson 135 Power | |
| Engine | 47 hp 35.0 kW |
| PTO (claimed) | 37.7 hp (rated) 28.1 kW |
| 43.3 hp (max) 32.3 kW | |
| Mechanical | |
| Two-wheel drive | |
| Steering | manual |
| power (optional) | |
| Mechanical drum brakes | |
| Open operator station. Quick Detach cab optional. | |
| Hydraulics | |
| Pump flow | 15.6 gpm (linkage pump) 59.0 lpm |
| 8.4 gpm (service pump) 31.8 lpm | |
| Total flow | 12.3 gpm 46.6 lpm |
| Tractor hitch | |
| Rear Type | II/I |
| Control | position and draft control |
| Rear lift | 3150 lbs 1428 kg |
| Power Take-off (PTO) | |
| Rear PTO | transmission |
| live two-stage clutch (optional) | |
| Rear PTO Type | 540 |
| 540/ground | |
| Engine RPM | 540@1684 |
| Dimensions & Tires | |
| Wheelbase | 74.25 inches 188 cm |
| Weight | 4079 lbs 1850 kg |
| Front tire | 5.50-16 |
| Rear tire | 12.4/11-28 |
 Full dimensions and tires ... | |
| 135 Serial Numbers | |
| Location: | Serial number on the instrument panel below the steering column. |
| 1965 | 101 |
| 1966 | 30283 |
| 1967 | 67597 |
| 1968 | 93305 |
| 1969 | 117429 |
| 1970 | 141426 |
| 1971 | 162115 |
| 1972 | 403518 |
| 1973 | 419583 |
| 1974 | 432709 |
| 1975 | 445602 |
| 1976 | 457866 |
| 1977 | 469335 |
| 1978 | 479192 |
| 1979 | 487350 |
| Final | 490714 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | generator |
| Charging amps | 10 |
| Battery volts | 12 |
| Battery AH | 40 (gas) |
| 95 (diesel) | |
| References | |
 | |
| MF135 published by Massey Ferguson |
