| | 1965 - 1979 |
| 100 Series | | Utility tractor |
|
| Transmission options |
| 6-speed |
| 8-speed |
| 12-speed partial power shift |
| Transmission |
| Gears | 6 forward and 2 reverse
|
| Oil capacity | 32 qts
30.3 L
|
| Oil type |
|
| Standard gear transmission for early models. Three gears, plus reverse, with high and low ranges. |

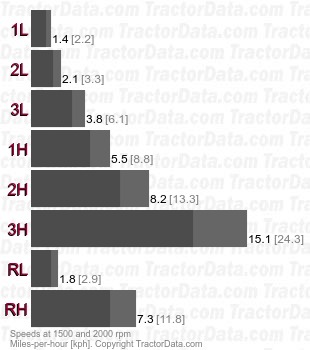

| Speeds |
| With 12.4/11-28 rear tires. |
|
| Transmission |
| Gears | 8 forward and 2 reverse
|
| Oil capacity | 32 qts
30.3 L
|
| Later standard transmission, replacing the 6-speed. |
| Transmission |
| Transmission | Multi-Power
|
| Type | partial power shift
|
| Gears | 12 forward and 4 reverse
|
| Oil capacity | 32 qts
30.3 L
|
| Oil type |
|
| Multi-Power provides a clutchless power shift from high (direct drive) to a lower speed, providing additional torque. Three gears, plus reverse, in high and low ranges plus the high/low Multi-Power. Multi-Power High should be used on hills as the low speed does not allow for engine braking. |

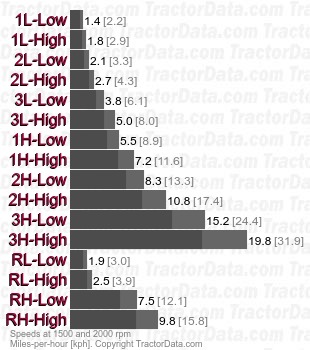

| Speeds |
| With 12.4/11-28 rear tires. |
|
