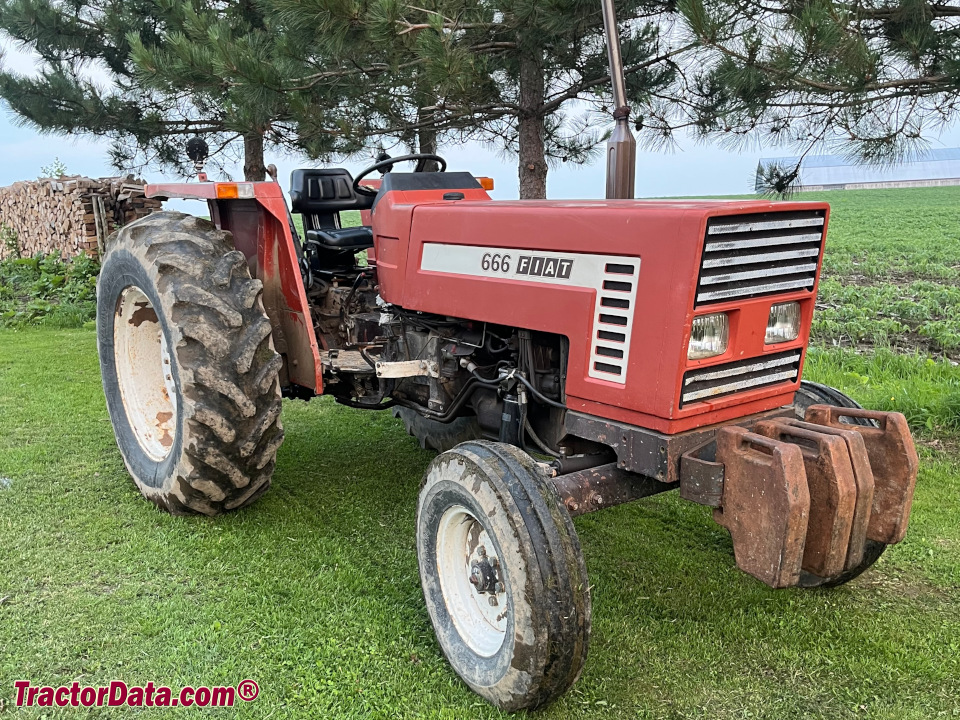

Fiat 666
| | 1982 - 1986 |
| 66 Series | | Utility tractor |
|
Series map:
566
666
766
43.3kw
50.7kw
58.2kw
| Production |
| Manufacturer | Fiat
|
| Utility tractor |
| Variants |
| 666 | 2WD
|
| 666DT | 4WD
|
| 666 | similar Hesston model
|
| Fiat 666 Power |
| Engine | 68 hp
50.7 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Final drives | spur gear
|
| Differential lock | mechanical rear
|
| Power steering ((Four-wheel drive models.)) |
| Mechanical wet disc brakes |
| Trailer brakes | hydraulic OptOptional
|
| Cab standard. |
| Hydraulics |
| Type | open center
|
| Pump flow | 8.9 gpm
33.7 lpm
|
| Tractor hitch |
| Rear Type | II/I
|
| Control | position and draft control
|
| Rear lift | 6922 lbs
3139 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000 (1.375)
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|
| Battery AH | 120
|
| References |
 |
| 666 published in 1982, by Fiat |
| 666 dt published by Fiat |
