| | 1982 - 1986 |
| 66 Series | | Utility tractor |
|
Series map:
566
666
766
43.3kw
50.7kw
58.2kw
| Transmission options |
| 12-speed synchronized |
| 12-speed mechanical shuttle |
| 20-speed creeper |

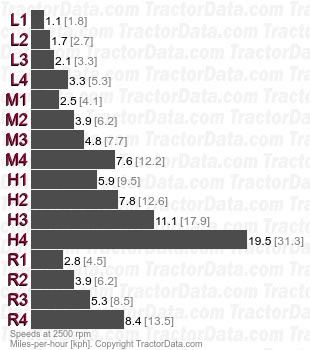

| Transmission |
| Type | synchronized
|
| Gears | 12 forward and 4 reverse
|
| Clutch | dry disc
|
| Oil capacity | 47.3 qts
44.8 L
|
| Four synchronized gears in three ranges. |
| Speeds |
| With 18.4/15-30 rear tires. |
|
| Transmission |
| Type | mechanical shuttle
|
| Gears | 12 forward and reverse
|

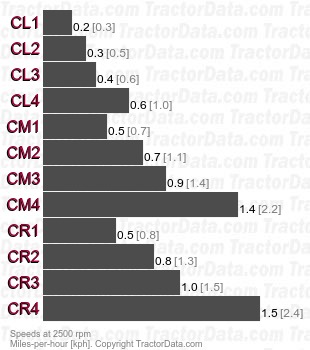

| Transmission |
| Type | creeper
|
| Gears | 20 forward and 8 reverse
|
| Speeds |
| With 18.4/15-30 rear tires. |
|
