McCormick Intl X1.45
|
|
| Production | |
| Distributor | McCormick Intl (a part of Argo) |
| Manufacturer | Kukje |
| Compact Utility tractor | |
| Variants | |
| X1.45 | ROPS shuttle |
| X1.45C | Cab shuttle |
| X1.45HC | Cab hydrostatic |
| McCormick Intl X1.45 Engine | |
| Kukje 2.3L 4-cyl diesel | |
| Fuel tank | 9.3 gal 35.2 L |
 Engine details ... | |
| McCormick Intl X1.45 Transmissions | |
| 12-speed synchronized shuttle | |
| hydrostatic | |
 Transmission details ... |
| McCormick Intl X1.45 Power | |
| Engine | 47 hp 35.0 kW |
| PTO (claimed) | 42 hp 31.3 kW |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | mechanical rear |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. Cab optional with air-conditioning. | |
| Photos | |
| No photos of the McCormick Intl X1.45 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Hydraulics | |
| Type | open center |
| Valves | 2 *Two remotes standard with cab. Optional with ROPS. |
| SCV flow | 11.1 gpm 42.0 lpm |
| Total flow | 16.8 gpm 63.6 lpm |
| Steering flow | 5.7 gpm 21.6 lpm |
| Tractor hitch | |
| Rear Type | I |
| Rear lift (at ends) | 3306 lbs 1499 kg |
| Rear lift (at 24"/610mm) | 2425 lbs 1099 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/540E |
| Dimensions & Tires | |
| Wheelbase | 70.9 inches 180 cm |
| Weight | 4115 to 4442 pounds |
 Full dimensions and tires ... | |
| McCormick Intl X1.45 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |

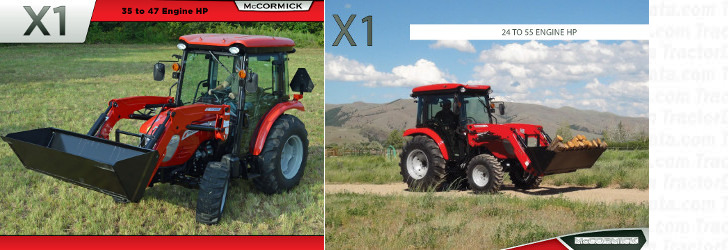

| X1. published in 2015, by McCormick | |
| X1.25 published in 2019, by McCormick |
